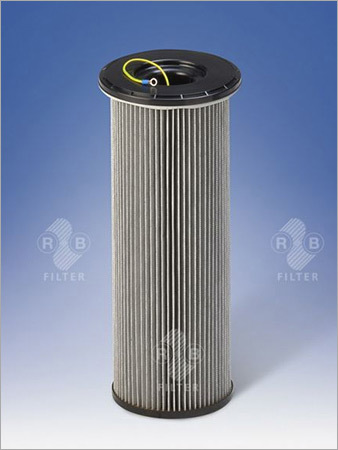

Dust Filter Cartridges Hotfit 178-145 mm

Name: Dust Filter Cartridges Hotfit 178-145 mm
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 3000 INR
Availability: InStock

Price 3000 INR/ Unit

Get a Price/Quote

MOQ : 5 Units

Dust Filter Cartridges Hotfit 178-145 mm Specification

Shape
Round

Usage
Filtration

Size
145 mm

Cartridge Style
Single Open End

Product Type
Dust Filter Cartridges

Efficiency
99.99%

Color
Silver

Warranty
Yes

Dust Filter Cartridges Hotfit 178-145 mm Trade Information

Minimum Order Quantity
5 Units

Supply Ability
1 Unit Per Week

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Within a certain price range free samples are available

Packaging Details
As per client requirement

Main Domestic Market
All India

Dust Filter Cartridges Hotfit 178-145 mm About

An experienced team of professionals assists us manufacture, export and supply an excellent quality array of Dust Filter Cartridges Hotfit 178-145 mm. Offered cartridges are widely used in foundries, dyes & pigment processing, chemical, plastic manufacturing, blast & induction furnace fumes. The provided cartridges are manufactured with the use of optimum quality raw material and advanced technology by our dexterous professionals. Besides, these products are made available in different specifications at market leading prices.

Features:

Quick and easy installation just by pressing from top
Rugged construction
Metal top
Takes up heavy dust loads
Most adaptable for retrofitting of filter bags

APPLICATIONS

(General dust collection applications can be customized per project)

Dust collectors
Industrial filtration systems
Pneumatic conveying
Process filtration
Food and pharmaceutical applications

ADVANTAGES

Multiple mounting options available
Suitable for raw gas and clean side installation
Robust flange and bayonet designs
High filtration efficiency
Custom configurations available

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Stainless steel weave
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Cleanable by compressed air
Multiple flange and bayonet options
Heavy-duty construction
Custom-built solutions available

Dust Filter Cartridges Hotfit Specifications:

Hotfit Comfort
For clean side installation
for hole in mounting plate 159 mm Accessory: gasket
[mm]	Length L [mm]	Filter area [m2]
145	603	1,2
145	603	1,5
145	985	2,0
145	1205	2,5
145	983	2,6
145	1405	3,0
145	1203	3,2
145	1203	3,8
145	2005	4,2
145	2003	5,5

Filter Media : According to the application the best possible filter medium for the respective case is selected.

The pleated filter media consist of polyester non wovens or needle felts. They can be equipped antistatic, oil and water repellent, with special coatings or membranes.

They are certified in accordance with DIN EN 60335-2-69 appendix A and are suitable for the filtration of health hazardous dusts.

Accessories : Filter holder, solenoid valves, electronic valve controllers.
