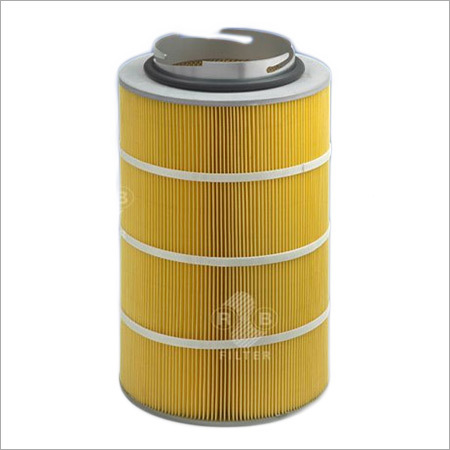

Dust Filter Cartridges Installation onto Spigot

Dust Filter Cartridges Installation onto Spigot
Dust Filter Cartridges Installation onto Spigot
Product Code : DFCIOS
Price And Quantity
  • Minimum Order Quantity
  • 5
  • Unit of Measure
  • Unit/Units
Product Description

With the assistance of our team of professionals, we are engaged in providing an assorted range of Dust Filter Cartridges Installation onto Spigot. The provided filters are used in different applications like mobile or stationary dust collectors, wood dust and shavings, shot blasting dust and many more. These filters are used as the primary filter in single stage systems to protect coils and mechanical equipment. Offered filters are manufactured using optimum quality raw material and modern technology by our experienced professionals. Furthermore, these Cartridge Air Filters are made available at economical prices.

Features:

  • Five times more filter area than filter bags

  • Easy replacement of filter bags

  • Excellent cleaning ability due to flat and open pleats

  • Long lasting

Specifications:

Top closed

A
[mm]
C
[mm]
Length L
[mm]
 Filter area
[m
2]


240 230 661 3,1

490 480 638 6,7

490 500 638 6,7

240 230 1041 5,2

490 480 1018 11,0

490 500 1018 11,0







For brush cleaning
 Accessories: Rotating brushes with crank / with motor
A
[mm]
C
[mm]
Length L
[mm]
 Filter area
[m
2]


240 230 661 3,1

490 480 638 6,7

490 500 638 6,7

240 230 1041 5,2

490 480 1018 11,0

490 500 1018 11,0

Filter Media : According to the application the best possible filter medium for the respective case is selected.

The pleated filter media consist of polyester non wovens or needle felts. They can be equipped antistatic, oil and water repellent, with special coatings or membranes.

They are certified in accordance with DIN EN 60335-2-69 appendix AA and are suitable for the filtration of health hazardous dusts.

Accessories : Rotating brushes for cleaning with crank or motor.





Trade Information
  • Payment Terms
  • Cheque
  • Sample Available
  • Yes
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • As per client requirement
  • Main Export Market(s)
  • Asia, Middle East
  • Main Domestic Market
  • All India
