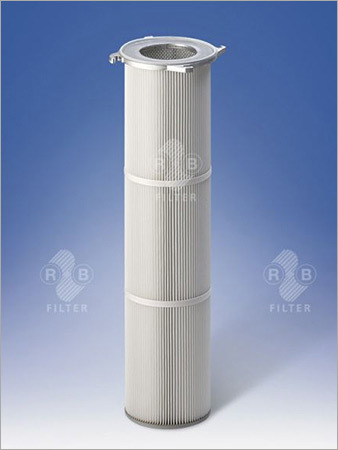

Multicell Filter Cartridges for Dust Filtration

Multicell Filter Cartridges for Dust Filtration
Multicell Filter Cartridges for Dust Filtration
Product Code : IDF
Price And Quantity
  • Minimum Order Quantity
  • 5
  • Unit of Measure
  • Unit/Units
Product Description

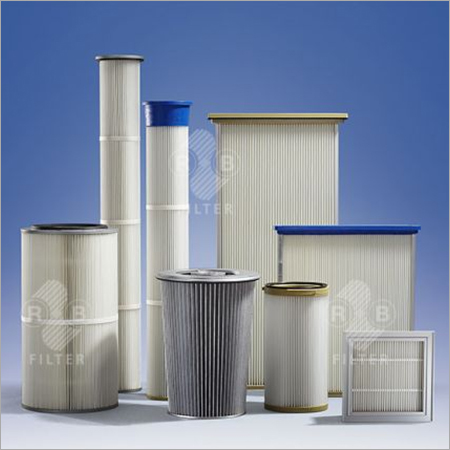

Fostered with immense years of industry experience and market understanding, we are offering a wide gamut of Multicell Filter Cartridges for Dust Filtration. The provided filter cartridges are manufactured using premium quality raw material and advanced technology by our distinguish professionals as per the global market standards. These filter cartridges are widely used in industries like sand blasting, welding fume separation, pharmaceutical, separation of wood dust, pneumatic product conveying, paper and other dust filtration plants. Besides, these Dust Collector Filter Cartridges are made available in different specifications at affordable prices.

Features:

  • More filter area on the same space

  • More filter area on the same space

  • Raw gas flow inside and outside

  • Alternate jet pulse cleaning during operation

  • Conical shape

  • The Multicell filter cartridge is designed for compact dust collectors.

  • The raw gas flows through the cartridge from inside and outside at the same time.

  • The purified air escapes to the top.

Specifications:

Raw gas side installation     Clean side installation
Length L
[mm]
Filter area
[m
2]

Length L
[mm]
Filter area
[m
2]
605 17,0   605 17,0
985 20,0   985 20,0
985 28,0   985 28,0
1205 34,0   1205 34,0

Filter Media : According to the application the best possible filter medium for the respective case is selected.The pleated filter media consist of polyester non wovens or needle felts. They can be equipped antistatic, oil and water repellent, with special coatings or membranes.

They are certified in accordance with DIN EN 60335-2-69 appendix AA and are suitable for the filtration of health hazardous dusts.

Accessories : Annular nozzle, solenoid valve, valve controllers.



Trade Information
  • Payment Terms
  • Cheque
  • Sample Available
  • Yes
  • Sample Policy
  • Within a certain price range free samples are available
  • Packaging Details
  • As per client requirement
  • Main Export Market(s)
  • Asia, Middle East
  • Main Domestic Market
  • All India
