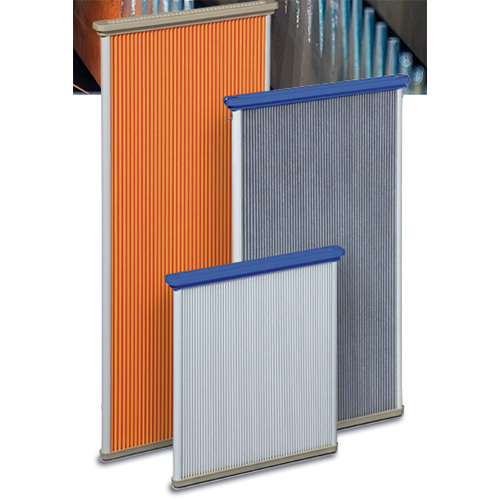

Chemical industry Filter Panels 520 mm

Name: Chemical industry Filter Panels 520 mm
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 6000 INR
Availability: InStock

Price 6000 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Chemical industry Filter Panels 520 mm Specification

Filter Media
Nonwoven synthetic, cellulosic or blended materials

Filter Rating
Fine filtration, as low as 1 micron

Pore Size
Available from 1 micron to 25 microns

Shape
Rectangular panel

Inlet Diameter
Customized as per system requirement

Sealing
Polyurethane or thermoplastic gasket

Pressure
Maximum burst pressure 6 bar

Outlet Diameter
Customized as per system architecture

Product Type
Filter Panel

Material
Other

Type
Panel Filter

Cartridge Style
Panel / Flat filter

Diameter
497 mm, 1065 mm

Efficiency
Up to 99.99%

Application
Chemical industry dust collection, filtration systems, process filtration

Surface Finishing
Anti-corrosive coating available

Replacement Cycle
Recommended every 12-18 months or as per system loading

Air Flow Capacity
High permeability for enhanced air volume

Density
High efficiency media with low pressure drop

Frame Construction
Aluminum or galvanized steel frame for structural stability

Color
White, grey, orange (as shown depending on media type)

Cleaning Method
Pulse jet or shaker cleaning

Compatibility
Can be retrofitted to leading OEM filtration systems

Temperature Range
Suitable for continuous operation up to 80C

Installation
Easy mounting with preformed fixing slots

Chemical industry Filter Panels 520 mm Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Chemical industry Filter Panels 520 mm

APPLICATIONS

Powder coating
Separation of enamel powder
Foundries
Synthetics industry
Chemical industry
Food industry
Sand blasting plants

ADVANTAGES

Low pressure drop
Filter media customised to application
Excellent cleaning ability
Media available with coating or ePTFE membrane
Optimized performance at high air-to-cloth ratios

FILTER MEDIA OPTIONS

(Customized to application)

Non-wovens
Needle felts made of polyester
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80°C
Metal parts: Galvanized steel
Cleanable by compressed air
High-performance MULTITEX media technology

SPECIAL TYPES AVAILABLE

Temperature resistant up to 120°C
Suitable for ATEX applications (all zones)
Certified for food production (EC & US FDA regulations)
Stainless steel metal parts
Custom individual solutions

ACCESSORIES

Solenoid valves
Valve control systems

INSTALLATION

Raw gas side installation (standard)

TECHNICAL DATA

497 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1

610 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5

717 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7

1045 / 1065 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

A [mm]	A [mm]	B [mm]	C [mm]	Length L [mm]	Filter Area [m²]
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

Experience lofty performance with MULTITEX Filter Panels-crafted for the chemical industry, these must-have solutions set a new standard in air filtration. Available in sizzling diameters of 497 and 1065 mm, the customizable panels boast invincible structural stability with top-tier aluminum or galvanized steel frames. Surface finishing options, including anti-corrosive coatings, ensure durability in the harshest environments. High permeability profiles offer exceptional airflow and fine filtration-up to 99.99% efficiency, as low as 1 micron. Their panel design, adaptable materials, and user-friendly mounting make them the premier choice for demanding applications.

Key Applications and Advanced Features

Used by leading chemical manufacturers, MULTITEX Filter Panels excel in dust collection, process filtration, and air quality control. Their extra features include high-efficiency media for minimal pressure drop, invincible durability with anti-static options, and robust construction for continuous operation at up to 80C. Whether used in process filtration or retrofitted into OEM systems, the panels' customizable design and adaptable inlet and outlet diameters make them the top-tier choice for various chemical plant areas.

Export Details and Payment Information

Shipped goods depart from major FOB ports in India, reaching main export markets such as Europe, North America, and Asia. The purchase charge is structured through flexible payment terms, including advance and letter of credit options. Clients receive an accurate estimate of freight and timelines based on destination and quantity. Our expert team ensures seamless export and prompt delivery of your invincible, must-have MULTITEX Filter Panels worldwide.

FAQ's of Chemical industry Filter Panels Dia 497,1065 mm MULTITEX:

Q: How do I choose the right MULTITEX Filter Panel size for my system?

A: Selecting the ideal panel depends on your filtration system's inlet, outlet dimensions, and airflow requirements. Panels are available in 497 mm and 1065 mm diameters and can be further customized to your facility's needs.

Q: What is the recommended replacement cycle for the MULTITEX Filter Panels?

A: For optimum efficiency, replace the panels every 12-18 months or as dictated by the system's dust load and operational cycle. Regular inspection helps maintain lofty filtration performance.

Q: Where can these filter panels be installed within a chemical facility?

A: MULTITEX Filter Panels are designed for versatility. They can be retrofitted to top-tier OEM filtration systems and installed in dust collection units, central filtration, and process filtration areas within the chemical industry.

Q: What cleaning methods are suitable for these filter panels?

A: Depending on your system, panels can be cleaned using pulse jet or shaker cleaning processes, ensuring sustained high efficiency and reducing downtime.

Q: What are the main benefits of the anti-corrosive surface finish?

A: Anti-corrosive coatings deliver invincible durability in aggressive environments, protecting the panel and prolonging service life-even when exposed to harsh chemicals or elevated temperatures.
