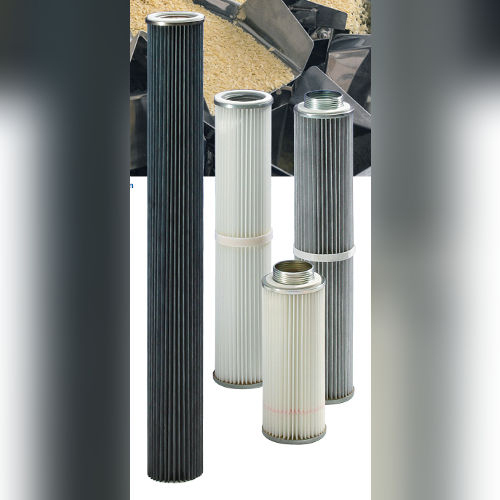

Production of synthetic parts Filter Cartridges 115 mm with Thread

Send Inquiry

Request To Call Back

Production of synthetic parts Filter Cartridges 115 mm with Thread

Name: Production of synthetic parts Filter Cartridges 115 mm with Thread
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 3800 INR
Availability: InStock

Price 3800 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Production of synthetic parts Filter Cartridges 115 mm with Thread Specification

Pore Size
Customizable, standard 10 microns

Filter Rating
5 to 50 microns (customizable)

Sealing
Molded end cap with integral thread

Outlet Diameter
Threaded outlet, standard size

Filter Media
Non-woven synthetic fiber

Inlet Diameter
Varies, standard 115 mm body with threaded end

Pressure
Max 6 bar

Shape
Cylindrical pleated

Product Type
Filter Cartridge

Material
Other

Type
Synthetic Filter Cartridge

Cartridge Style
Pleated synthetic cartridge with end thread

Diameter
115 mm

Efficiency
Up to 99%

Application
Industrial filtration, water treatment, chemical processing, air filtration

Reusability
Washable and reusable (depending on contamination)

Compatible Housing
Fits standard 115 mm cartridge filter housings

Replacement Interval
Depends on usage and application, generally 3-12 months

Corrosion Resistance
High, suitable for aggressive media dependent on material

Max Operating Temperature
80C (subject to media and sealing)

End Connection
Threaded (various thread types available, e.g., BSP, NPT)

Weight
Varies; approx. 0.5-2 kg (according to length)

Color
Black or white, depending on media type

Length
Standard lengths: 10

Flow Direction
Out-to-in or in-to-out (as specified)

Installation Orientation
Vertical or horizontal

Production of synthetic parts Filter Cartridges 115 mm with Thread Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Production of synthetic parts Filter Cartridges 115 mm with Thread

APPLICATIONS

Pneumatic conveying
Glass industry
Filling stations
Production of synthetic parts
Pharmaceutical industry
Food industry

ADVANTAGES

Easy and quick installation by screwing into filter holder
No tools required
Filter medium customized to application
Star-shaped bottom design

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Glass fibre
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of hazardous dusts

FEATURES

Max operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 220C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holders
Solenoid valves
Valve control systems

INSTALLATION TYPES & DIMENSIONS

A. Raw Gas Side Installation Thread Rd 60

Dimensions:

115
100
Inner 72
Length: L (varies)
Filter holder
Hole in plate

B. Raw Gas Side Installation Thread Rd 72

Dimensions:

115
100
Inner 80
Length: L
Filter holder
Hole in plate

C. Raw Gas Side Installation Thread Rd 74

Dimensions:

115
100
Inner 85 / 4 M10 (bolt pattern)
Length: L
Filter holder

TECHNICAL DATA (Length & Filter Area)

Thread Rd 60 Accessory: Filter Holder 310-001-000043

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.4
115	602	0.8
115	982	1.3
115	1202	1.6

Thread Rd 72 Accessory: Filter Holder 310-001-000071

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.5
115	602	1.0
115	982	1.6
115	1202	2.0

Thread Rd 74 Accessory: Filter Holder 310-001-000045

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.5
115	602	1.0
115	982	1.6
115	1202	1.9

Experience the elite standard in filtration with our sensational Production of Synthetic Parts Filter Cartridges 115 mm with Thread. Offering top-tier efficiency up to 99%, these filter cartridges are designed for ultimate reliability and incomparable durability. Available in limited stock, each cartridge is produced using premium synthetic fibers (polypropylene or polyester), ensuring high corrosion resistance, customizable micron ratings, and compatibility with aggressive media. Suitable for industrial filtration, water treatment, and chemical processing, these washable and reusable cartridges embody the pinnacle of filtration technology. Choose black or white media, tailored to your specific requirements.

Unmatched Advantages and Versatile Applications

Our Synthetic Filter Cartridges 115 mm with Thread deliver outstanding performance in a wide range of demanding environments. Their customizable filter ratings and media options provide a significant advantage for industrial filtration, water treatment, air purification, and chemical processing applications. Designed for both vertical and horizontal installations, their pleated synthetic construction supports either out-to-in or in-to-out flow. The washable, reusable style ensures longevity and cost-effectiveness, making them an ideal solution for continuous or high-demand use.

Efficient Order Processing and Premium Delivery

We offer a premium order processing experience, ensuring your filter cartridges are delivered efficiently in accordance with industry standards. Delivery times vary depending on order volume and customization requests. Certified quality standards are maintained throughout production. Samples can be provided for a nominal charge under our flexible sample policy, ensuring peace of mind before placing bulk orders. Whether you require a single unit or a large consignment, our streamlined shipping process guarantees reliability and satisfaction.

FAQ's of Production of synthetic parts Filter Cartridges 115 mm with Thread:

Q: How do I select the right thread type for my filter cartridge?

A: You can specify your preferred thread type (e.g., BSP, NPT) when placing your order to ensure compatibility with your existing filter housing.

Q: What are the main benefits of using these synthetic filter cartridges?

A: Our synthetic filter cartridges offer high efficiency, excellent corrosion resistance, reusable design, and customizable features, making them ideal for a variety of industrial filtration needs.

Q: Where can these filter cartridges be installed?

A: They are designed for use in both vertical and horizontal orientations and can be installed in standard 115 mm cartridge filter housings across multiple industries, such as water treatment and chemical processing.

Q: What is the typical replacement interval for these cartridges?

A: The recommended replacement interval is generally between 3 and 12 months, depending on the application and level of contamination.

Q: How are the cartridges delivered and what certifications do they have?

A: Orders are processed promptly and cartridges are delivered according to your specifications. Our products meet strict industry certifications for quality and performance.
