Foundries

• Application
• Hot Gas Filtration in Foundries, Metal, Chemical & Process Industries

• Cartridge Style
• Other, Cylindrical, Pleated

• Diameter
• 150 mm, 228 mm, 327 mm

• Efficiency
• 99% at sub-micron levels

• Filter Media
• Other, High Temperature Resistant Material, Pleated Media, Stainless Steel/Metal Mesh

• Filter Rating
• 0.5 to 10 microns

• Inlet Diameter
• Customizable based on requirement

• Material
• Other

• Outlet Diameter
• Customizable based on requirement

• Pore Size
• 0.5 microns and above

• Pressure
• Designed for high pressure hot gas applications

• Product Type
• Industrial Filter Cartridge

• Sealing
• Silicone, Viton, PTFE, Metal-to-metal sealing

• Shape
• Round / Cylindrical

• Type
• Other, Filter Cartridges for Hot Gas Filtration

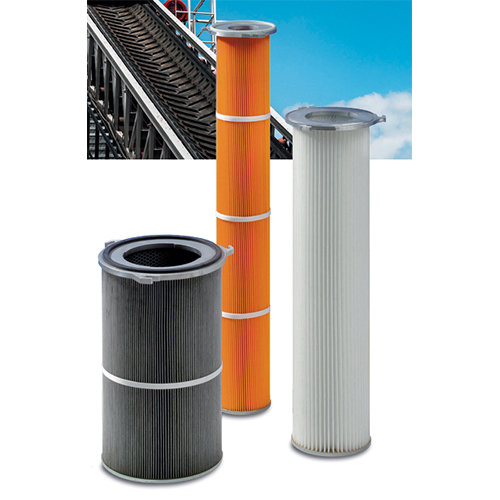

• Application
• Industrial dust collection, foundries, metal processing, powder coating plants

• Cartridge Style
• Other, Flange 3 Lugs

• Diameter
• 150 mm, 214 mm, 327 mm

• Efficiency
• Up to 99.9%

• Filter Media
• Other, Pleated Media, Antistatic media available

• Filter Rating
• MERV 11 to MERV 15

• Inlet Diameter
• Customized as per requirement

• Material
• Other

• Outlet Diameter
• Customized as per requirement

• Pore Size
• 0.3 to 20 micron

• Pressure
• Max Operating Pressure 4 bar

• Product Type
• Foundries Filter Cartridge

• Sealing
• PU Gasket, molded end caps

• Shape
• Cylindrical

• Type
• Other, Filter Cartridge

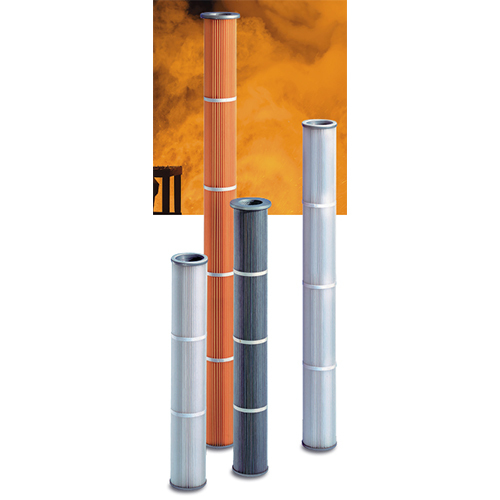

• Application
• Foundries, Dust Collection, Air Filtration Systems, Industrial applications

• Cartridge Style
• Other, Cylindrical

• Diameter
• 160 mm

• Efficiency
• Up to 99.9%

• Filter Media
• Other, Pleated synthetic, cellulose, or blended filtration media

• Filter Rating
• 2 to 30 microns (depending on media)

• Inlet Diameter
• 160 mm (same as outer diameter for straight fit applications)

• Material
• Other

• Outlet Diameter
• Customizable as per system design

• Pore Size
• 2-30 m

• Pressure
• Maximum operating pressure up to 6 bar

• Product Type
• Foundries Filter Cartridges

• Sealing
• PU Gasket or molded rubber ends

• Shape
• Round / Cylindrical

• Type
• Other, Filter Cartridge
