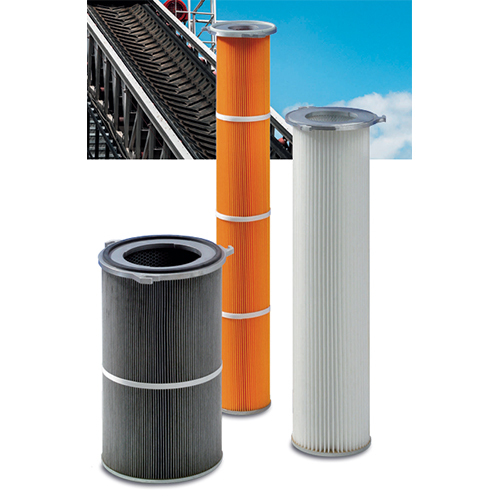

Send InquiryFilter Cartridges Dia 150 , 214 , 327 mm (Flange 3 Lugs)
Price 5500 INR/ Piece
MOQ : 2 Pieces
Filter Cartridges Dia 150 , 214 , 327 mm (Flange 3 Lugs) Specification
- Outlet Diameter
- Standard as per model design
- Inlet Diameter
- 150 mm / 214 mm / 327 mm (Varies per model)
- Pressure
- 6 bar
- Sealing
- Polyurethane Gasket, Custom Options
- Filter Rating
- F5 to F9, as per EN779 or customized
- Pore Size
- 0.3 to 40 micron (depending on media)
- Shape
- Cylindrical
- Filter Media
- Synthetic, Pleated Paper, Spunbond Polyester
- Product Type
- Industrial Filter Cartridge
- Material
- Other
- Type
- Filter Cartridge
- Cartridge Style
- Flange 3 Lugs
- Diameter
- 150 mm, 214 mm, 327 mm
- Efficiency
- Up to 99.99%
- Application
- Industrial Dust Collection, Air Filtration, HVAC Systems
- Installation Position
- Vertical or Horizontal
- Length
- Up to 1200 mm (customizable)
- Color Options
- Black, Orange, White (others on request)
- Operating Temperature Range
- -20C to +120C (Depending on Media)
- Connection Type
- Flange with 3 Lugs
- Customization Available
- Yes; size, media, and connectors can be customized
- Cleaning Method
- Pulse Jet, Reverse Air, Manual
- Reusable
- Yes; washable type available
- End Cap Material
- Galvanized Steel, Stainless Steel
Filter Cartridges Dia 150 , 214 , 327 mm (Flange 3 Lugs) Trade Information
- Minimum Order Quantity
- 2 Pieces
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 7 Days
About Filter Cartridges Dia 150 , 214 , 327 mm (Flange 3 Lugs)
APPLICATIONS
- Foundries
- Recycling
- Aviation industry
- Metal spraying
- Mining industry
- Separation of oil and emulsion mist
ADVANTAGES
- Technical guidance available
- Filter medium customized to application
- Robust 3-lug aluminium flange
- Long service life
- Venturi nozzle reusable
FILTER MEDIA OPTIONS
(Customized to application)
- Polyester
- Polypropylene
- Polyphenylensulfide (PPS)
- Polyimide
- Glass fibre
- Stainless steel weave
- Other non-standard media
POSSIBLE EQUIPMENTS / TREATMENTS
- Antistatic
- Oil and water repellent
- Microporous finish
- Nano fibres
- ePTFE membrane
Certification:
- DIN EN 60335-2-69 Appendix AA
- Suitable for filtration of health hazardous dusts
FEATURES
- Maximum operating temperature: 80C
- Metal parts: Galvanized steel
- Cleanable by compressed air
SPECIAL TYPES AVAILABLE
- Temperature resistant up to 400C
- Suitable for ATEX applications (all zones)
- Certified for food production (EC + US FDA)
- Stainless steel metal parts
- Custom solutions available
ACCESSORIES
Venturi Nozzles
- 310-002-000013 214 mm
- 310-002-000015 327 mm
Short Injectors
- 310-002-000001 150 mm
- 310-002-000002 214 mm
- 310-002-000003 327 mm
- Solenoid valves
- Valve control systems
- Air flow deflectors
INSTALLATION
Raw gas side or clean side installation (as applicable)
TECHNICAL DATA
A. 150 mm PCD 205 mm
B. 214 mm PCD 266 mm
C. 327 mm PCD 393 mm
D. 327 mm PCD 365 mm (Raw Gas Side)
Redeem unbeatable performance with our top-notch Filter Cartridges (Dia 150 / 214 / 327 mm, Flange 3 Lugs), available at competitive pricing-this stellar offer is ending soon! Crafted for industrial dust collection, HVAC, and air filtration, these cartridges support a customizable length up to 1200 mm and operate efficiently from -20C to +120C. Featuring galvanized or stainless steel end caps, various color options, and multiple cleaning methods (pulse jet, reverse air, manual), they ensure maximum durability and reusability. Achieve up to 99.99% filtration efficiency with pleated or specialty media. Custom-sizing and connection options available!
Versatile Solutions for Industrial Air Filtration
Filter Cartridges with diameters 150, 214, and 327 mm (Flange 3 Lugs) are engineered for superior performance in dust collection, HVAC, and air filtration systems. Their unique advantage lies in customization-length, media, and connectors are tailored to suit any industrial need, ensuring optimal fit and efficiency. These cartridges excel across diverse surfaces, offering reliable operation whether mounted vertically or horizontally, and delivering consistent air quality improvement in demanding applications.
Seamless Delivery and Sampling Options for Filter Cartridges
Filter Cartridges Dia 150, 214, 327 mm (Flange 3 Lugs) can be delivered FOB at major Indian ports, facilitating easy drop-off to international buyers. Transparent sample policies help manage your initial expenditure and evaluation needs-a sample is available upon request under flexible terms. Each sample is carefully delivered, ensuring you can assess quality hands-on before committing to bulk investment, minimizing risk while maximizing return on your procurement process.
Versatile Solutions for Industrial Air Filtration
Filter Cartridges with diameters 150, 214, and 327 mm (Flange 3 Lugs) are engineered for superior performance in dust collection, HVAC, and air filtration systems. Their unique advantage lies in customization-length, media, and connectors are tailored to suit any industrial need, ensuring optimal fit and efficiency. These cartridges excel across diverse surfaces, offering reliable operation whether mounted vertically or horizontally, and delivering consistent air quality improvement in demanding applications.
Seamless Delivery and Sampling Options for Filter Cartridges
Filter Cartridges Dia 150, 214, 327 mm (Flange 3 Lugs) can be delivered FOB at major Indian ports, facilitating easy drop-off to international buyers. Transparent sample policies help manage your initial expenditure and evaluation needs-a sample is available upon request under flexible terms. Each sample is carefully delivered, ensuring you can assess quality hands-on before committing to bulk investment, minimizing risk while maximizing return on your procurement process.
FAQ's of Filter Cartridges Dia 150 , 214 , 327 mm (Flange 3 Lugs):
Q: How can I customize Filter Cartridges for my specific industrial needs?
A: You can customize Filter Cartridges by specifying diameter, length (up to 1200 mm), filter media type, connector style, and color. Please share your requirements for tailored solutions.Q: What cleaning methods are supported for these cartridges?
A: The Filter Cartridges can be cleaned using pulse jet, reverse air, or manually, enhancing reusability and extending operational life in various environmental conditions.Q: Where are these Filter Cartridges commonly used?
A: They are widely utilized in industrial dust collection, HVAC systems, and air filtration setups for factories, warehouses, and large commercial buildings.Q: What is the sample policy and how is a sample delivered?
A: A sample can be provided at a nominal expenditure. Once requested, it is delivered to the designated drop-off or FOB port for your evaluation before making a larger purchase.Q: When should I consider replacing or washing the cartridge?
A: Cartridges are reusable and washable, but replacement or cleaning schedules depend on application intensity and environmental dust levels. Regular monitoring is advised for optimal filtration efficiency.Q: What benefits do these Filter Cartridges provide over standard options?
A: With up to 99.99% efficiency, customizable options, multiple cleaning methods, and high durability under varied pressures and temperatures, these cartridges provide stellar, long-term performance and cost savings.Technical Details
