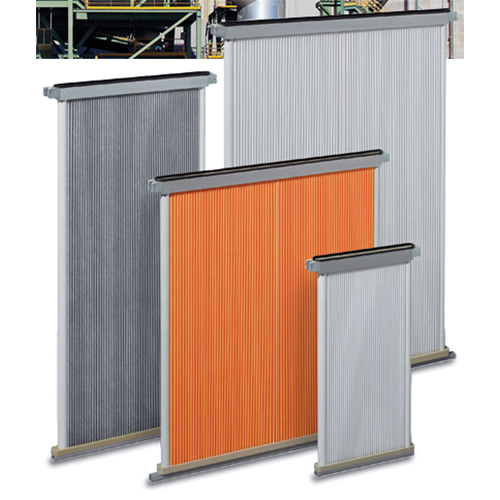

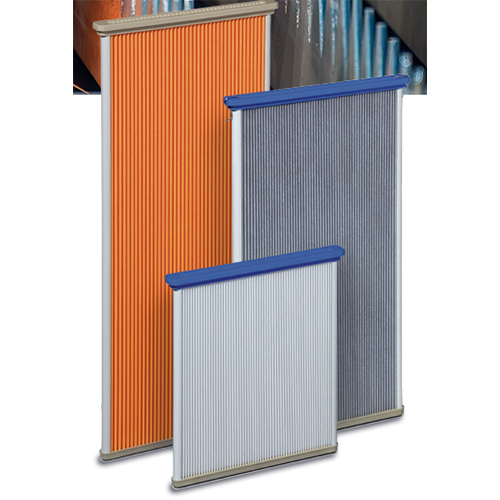

Chemical industry Filter Panels Dia 497,1065 mm MULTITEX

Name: Chemical industry Filter Panels Dia 497,1065 mm MULTITEX
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 3800 INR
Availability: InStock

Price 3800 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Chemical industry Filter Panels Dia 497,1065 mm MULTITEX Specification

Shape
Rectangular panel

Filter Rating
1 to 25 micron

Pore Size
1 micron onwards

Sealing
EPDM/Gasket sealing

Filter Media
Polyester, Polypropylene, Stainless Steel Mesh

Outlet Diameter
Customizable as per requirement

Inlet Diameter
Customizable as per requirement

Pressure
Upto 4 Bar

Product Type
Industrial Filter

Material
Other

Type
Filter Panel

Cartridge Style
Panel type

Diameter
497 mm, 1065 mm

Efficiency
High, up to 99%

Application
Chemical industry filtration, Liquid-solid separation, Industrial process filtration

End Connections
Customizable as per system design

Chemical Compatibility
Suitable for a wide range of aggressive chemicals

Color
Gray, Orange (others on request)

Frame Material
Aluminum/SS optional

Flow Rate
High flow rate (varies by panel size)

Reusability
Washable, reusable panels

Operating Temperature
Up to 120C

Design
Robust construction for prolonged operational life

Mounting
Standard mounting provisions for filter chambers

Dimensions
Various sizes available, custom dimensions possible

Chemical industry Filter Panels Dia 497,1065 mm MULTITEX Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Chemical industry Filter Panels Dia 497,1065 mm MULTITEX

APPLICATIONS

Powder coating
Separation of enamel powder
Foundries
Synthetics industry
Chemical industry
Food industry
Sand blasting plants

ADVANTAGES

Low pressure drop
Filter media customised to application
Excellent cleaning ability
Media available with coating or ePTFE membrane
Optimized performance at high air-to-cloth ratios

FILTER MEDIA OPTIONS

(Customized to application)

Non-wovens
Needle felts made of polyester
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80°C
Metal parts: Galvanized steel
Cleanable by compressed air
High-performance MULTITEX media technology

SPECIAL TYPES AVAILABLE

Temperature resistant up to 120°C
Suitable for ATEX applications (all zones)
Certified for food production (EC & US FDA regulations)
Stainless steel metal parts
Custom individual solutions

ACCESSORIES

Solenoid valves
Valve control systems

INSTALLATION

Raw gas side installation (standard)

TECHNICAL DATA

497 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1

610 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5

717 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7

1045 / 1065 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

A [mm]	A [mm]	B [mm]	C [mm]	Length L [mm]	Filter Area [m²]
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

Acclaimed by industry experts, the MULTITEX Chemical Industry Filter Panels ( 497 mm, 1065 mm) offer a fresh perspective on filtration solutions. Highly recommended for demanding chemical filtration, these prime panels boast enviable durability and breathtaking performance, supporting high flow rates up to 4 Bar and an operating temperature of 120C. Crafted with robust polypropylene, polyester, or stainless steel, these panels feature custom dimensions, color options, and mounting configurations suitable for aggressive chemical applications. Washable, reusable, and engineered for up to 99% efficiency, MULTITEX panels stand at the forefront of industrial filtration.

Exceptional Surface Adaptability and Application Versatility

MULTITEX Chemical Industry Filter Panels are expertly designed for prime performance across varied surfaces found in filtration chambers and chemical processing units. Their robust construction and customizable features make them highly suitable for environments requiring liquid-solid separation, industrial process filtration, or chemical compatibility. Special features include high reusability, robust aluminum/stainless steel frames, and EPDM/gasket sealing for reliability. These panels are ideal for use in chemical plants, manufacturing units, and processing industries requiring superior filtration efficacy.

Swift Dispatch and Nationwide Reach

MULTITEX Filter Panels are dispatched promptly after order confirmation, ensuring minimal downtime for your operations. The sale price includes options for custom sizes or specifications as per your requirements. Dispatching from our prime manufacturing location, we cater to the main domestic market across India with efficient logistics. FOB port facilities enable seamless national and international shipments, making MULTITEX panels accessible wherever you need trusted filtration solutions.

FAQ's of Chemical industry Filter Panels Dia 497,1065 mm MULTITEX:

Q: How can I customize the size and color of MULTITEX Filter Panels to suit my filtration system?

A: You can request custom sizes and select from standard gray or orange colors, with additional color options available on request. Our engineering team ensures compatibility with your specific system design and process requirements.

Q: What are the special features that make these filter panels highly recommended for chemical industry use?

A: MULTITEX panels are known for their robust construction, high flow rate, chemical compatibility, and up to 99% filtration efficiency. Their reusable design, customizable connections, and strong sealing ensure reliable, efficient filtration in demanding environments.

Q: When can I expect delivery of my ordered filter panels?

A: Filter panels are dispatched promptly upon order confirmation. Delivery times may vary based on customization and location, but our logistics ensure rapid fulfillment across the main domestic and international markets.

Q: Where are these filter panels primarily used within the chemical industry?

A: These panels are ideal for chemical plants, manufacturing units, and industrial process facilities requiring filtration of aggressive chemicals, liquid-solid separation, and high-efficiency process filtration.

Q: What benefits do the washable and reusable features of the filter panels provide?

A: The washable and reusable design significantly reduces replacement frequency, lowers operational costs, and ensures prolonged service life, contributing to sustainable and efficient industrial filtration.
