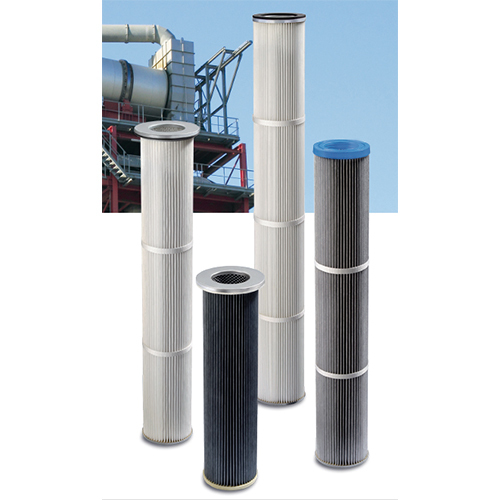

Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm

Send Inquiry

Request To Call Back

Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm

Name: Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 4800 INR
Availability: InStock

Price 4800 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm Specification

Sealing
EPDM, NBR, Silicone, Polyurethane Gasket

Outlet Diameter
Customizable

Pore Size
1-100 micron (customizable)

Inlet Diameter
Customizable

Shape
Cylindrical

Filter Media
Synthetic fiber, Cellulose, Polypropylene, Polyester

Pressure
2-8 bar

Filter Rating
1-100 micron (optional)

Product Type
Industrial Filtration Cartridge

Material
Other

Type
Filter Cartridge

Cartridge Style
Pleated cylindrical

Diameter
150 mm

Efficiency
High Filtration Efficiency

Application
Filling and mixing of products in Food and Cosmetics Industry

Chemical Compatibility
Suitable for use with a wide range of food and cosmetic process chemicals

Color
White, Black, Blue (as per material)

Flow Direction
Inside-Out / Outside-In (according to system design)

Regulatory Compliance
Food grade compliant materials (FDA/EU grade on request)

Length
Standard 10, 20, 30, or 40 inch (custom lengths available)

Temperature Resistance
Up to 80C (material dependent)

Installation
Easy installation with existing filter housings

End Cap Type
DOE, SOE, Finned, Flat, Customized types

Reusability
Washable and reusable (depending on application/contaminant level)

Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm

APPLICATIONS

Silo ventilation
Cement industry
Filling and mixing of products
Food and cosmetics industry
Pneumatic conveying

ADVANTAGES

Suitable for dusts which are difficult to clean
Versatile use for all purposes
Suitable for high dust loads
Allows high air-to-cloth ratio
Snap lock option for raw gas side installation

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Stainless steel weave
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 400C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holder for snap lock
Solenoid valves
Valve control systems

INSTALLATION TYPES & TECHNICAL DATA

A. Clean Side Installation

(mm)	Length L (mm)	Filter Area (m)
150	602	1.5
150	982	2.5
150	1202	3.0
150	2002	5.0

B. Raw Gas Side Installation Tie Rod

(mm)	Length L (mm)	Filter Area (m)
150	602	1.5
150	982	2.5
150	1202	3.0
150	2002	5.0

C. Raw Gas Side Installation Step Mount

Accessory: Filter Holder 310-001-000029

(mm)	Length L (mm)	Filter Area (m)
150	605	1.5
150	985	2.5
150	1205	3.0
150	2005	5.0

Experience marvelous filtration with our masterful Filter Cartridges, resplendent in design and function for filling and mixing within food and cosmetics industries. With advanced technology, these cartridges offer high filtration efficiency (1-100 micron), inside-out or outside-in flow, robust chemical compatibility, and pressure durability (2-8 bar). Flexible in size (standard/custom lengths), end cap types, and colors, they are FDA/EU food-grade compliant on request. Take advantage of current discounts on bulk or advance purchases, or explore clearance deals for select variations. Easy to install, washable, and reusable depending on application, these filter cartridges offer premium performance and value. Exporter, manufacturer, and supplier from India.

Using 150 mm Dia Filter Cartridges in Food & Cosmetics Applications

For optimal filling and mixing, install the 150 mm diameter filter cartridges in existing housings at production sites. Follow the selected flow direction-inside-out or outside-in-as your system demands. The cartridges boast user-friendly installation, resplendent chemical compatibility, washable reusability, and customized pore sizes. Especially suited for food-grade and cosmetic settings, these pleated cylindrical cartridges deliver superior particle removal and effortless maintenance, upholding hygiene and regulatory standards throughout machine operation.

Global Supply, Competitive Prices & Secure Packaging

Our filter cartridges are dispatched promptly to main export markets including North America, Europe, and Asia. With abundant supply ability, we cater to large and small orders alike. Each unit is packaged securely, ensuring every shipment arrives intact and ready for installation. Seeking an asking price? Contact us for custom quotations and advance purchase deals. Experience masterful service combined with safe shipping and flexible solutions tailored for the filling and mixing requirements of the food and cosmetics industries worldwide.

FAQ's of Filling and mixing of products-Food and cosmetics ind Filter Cartridges Dia 150 mm:

Q: How do I choose the correct filter cartridge configuration for my filling or mixing process?

A: Select the filter cartridge based on flow direction, chemical compatibility, pressure requirement, filter rating, and cartridge length or end cap type-consult our experts for tailored recommendations to fit your production system.

Q: What are the main benefits of using these filter cartridges in the food and cosmetics industries?

A: These cartridges provide marvelous filtration efficiency, resplendent hygiene standards, regulatory compliance, and easy reusability, ensuring high-quality results while reducing downtime and operating costs.

Q: When should I wash or replace the filter cartridges?

A: Wash and reuse the cartridges as long as contaminant levels and application conditions permit. If performance drops or clogging occurs, consider replacement to maintain optimal machine efficiency.

Q: Where are these filter cartridges installed within the production process?

A: The cartridges integrate seamlessly into existing filter housings located at key points in the filling and mixing lines of food or cosmetic manufacturing facilities.

Q: What is the process for ordering and receiving these filter cartridges?

A: Contact us with your requirements-such as dimensions, ratings, and quantities-to receive an asking price and dispatch details. Each order is securely packaged and shipped globally, ensuring safe and timely delivery.
