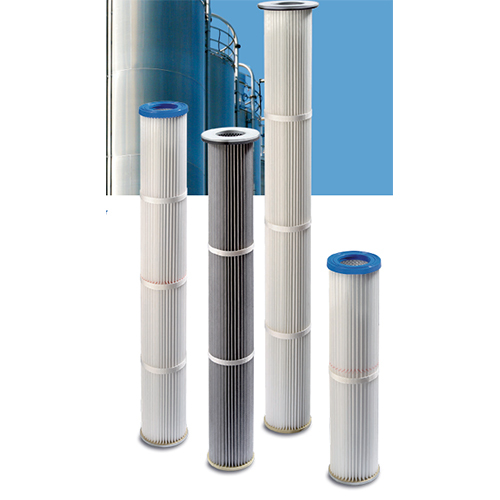

Send InquiryProduct separators-Loading stations Filter Cartridges Dia 130 mm
Price 5900 INR/ Piece
MOQ : 2 Pieces
Product separators-Loading stations Filter Cartridges Dia 130 mm Specification
- Outlet Diameter
- Customizable as per requirement
- Pore Size
- 1-20 micron
- Sealing
- Polyurethane or molded gasket
- Filter Rating
- 1-20 micron (as per application)
- Shape
- Cylindrical
- Filter Media
- Non-woven polyester, cellulose blend
- Inlet Diameter
- Customizable as per requirement
- Pressure
- Recommended max operating: 4 bar
- Product Type
- Industrial Filter Cartridge
- Material
- Other
- Type
- Filter Cartridge
- Cartridge Style
- Pleated Filter Cartridge
- Diameter
- 130 mm
- Efficiency
- Up to 99.99%
- Application
- Dust filtration in product separators and loading stations
- Maximum Air Flow
- Up to 2000 m3/h depending on filter size
- Length
- Available in multiple lengths as per installation
- Mounting
- Snap-band or flange type
- Flow Direction
- Outside to Inside
- Reusability
- Washable and reusable (depends on material type)
- Replacement Interval
- 6-12 months depending on usage
- End Cap Color
- Blue, White, Black (varies by type)
- Operating Temperature
- Up to 80C
Product separators-Loading stations Filter Cartridges Dia 130 mm Trade Information
- Minimum Order Quantity
- 2 Pieces
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 7 Days
About Product separators-Loading stations Filter Cartridges Dia 130 mm
APPLICATIONS
- Silo ventilation
- Pneumatic conveying
- Product separators
- Food industry
- Loading stations
ADVANTAGES
- Easy to clean due to low pleat depth
- Suitable for agglomerating dusts
- Separation of high dust loads
- High air-to-cloth ratio possible
- Filter cartridge with reusable support retainer
FILTER MEDIA OPTIONS
(Customized to application)
- Polyester
- Polypropylene
- Polyphenylensulfide (PPS)
- Polyimide
- Glass fibre
- Stainless steel weave
- Other non-standard media
POSSIBLE EQUIPMENTS / TREATMENTS
- Antistatic
- Oil and water repellent
- Microporous finish
- Nano fibres
- ePTFE membrane
Certification:
- DIN EN 60335-2-69 Appendix AA
- Suitable for filtration of health hazardous dusts
FEATURES
- Maximum operating temperature: 80C
- Metal parts: Galvanized steel
- Cleanable by compressed air
SPECIAL TYPES AVAILABLE
- Temperature resistant up to 400C
- Suitable for ATEX applications (all zones)
- Certified for food production (EC + US FDA)
- Stainless steel metal parts
- Custom solutions available
ACCESSORIES
- Filter holder for snap lock
- Solenoid valves
- Valve control systems
INSTALLATION TYPES
A. Clean Side Installation
B. Raw Gas Side Installation Step Mount
Accessory: Filter Holder 310-001-000026
Grab the extraordinary performance of our Product Separators and Loading Stations Filter Cartridges, designed for ultimate efficiency in dust filtration. Highlighted by a 130 mm diameter and available in multiple lengths for customized installation, these cartridges offer sublime purity with up to 99.99% efficiency. Limited stock ensures exclusivity, so don't miss out! Available end cap colors include blue, white, and black. Adaptable for various filter station applications, they feature robust construction from polyester, cellulose, and synthetic fiber. Washable, reusable (material dependent), and built for demanding conditions, they are the ultimate choice for superior separation and air filtration.
Special Features and Competitive Advantages
Our filter cartridges are highlighted by their sublime versatility and robust performance. With a pleated design, customizable length, and multiple end cap color options, they deliver flexibility for any application. Extraordinary filtration efficiency up to 99.99%, combined with reusability and a strong mounting system, offers a competitive edge. These cartridges are ideal for dust filtration in product separators and loading stations across manufacturing, chemical, and food processing industries.
Export Markets, Packaging, and Supply Details
Our filter cartridges are exchanged and dispatched seamlessly to key international markets such as Southeast Asia, Europe, and the Middle East. Each cartridge is securely packaged using sturdy export-grade materials, ensuring a damage-free handover to clients. With the ability to supply large volumes on demand, we maintain a continuous and reliable flow of products to meet diverse industrial needs globally.
Special Features and Competitive Advantages
Our filter cartridges are highlighted by their sublime versatility and robust performance. With a pleated design, customizable length, and multiple end cap color options, they deliver flexibility for any application. Extraordinary filtration efficiency up to 99.99%, combined with reusability and a strong mounting system, offers a competitive edge. These cartridges are ideal for dust filtration in product separators and loading stations across manufacturing, chemical, and food processing industries.
Export Markets, Packaging, and Supply Details
Our filter cartridges are exchanged and dispatched seamlessly to key international markets such as Southeast Asia, Europe, and the Middle East. Each cartridge is securely packaged using sturdy export-grade materials, ensuring a damage-free handover to clients. With the ability to supply large volumes on demand, we maintain a continuous and reliable flow of products to meet diverse industrial needs globally.
FAQ's of Product separators-Loading stations Filter Cartridges Dia 130 mm:
Q: How can I determine the correct length and installation type for my loading station filter cartridge?
A: Measure your installation requirements and select cartridge lengths and mounting style (snap-band or flange type) that fit your product separator or loading station specifications.Q: What applications are these filter cartridges suitable for?
A: These extraordinary filter cartridges are designed for dust filtration in product separators and loading stations, with broad applicability across manufacturing, food processing, and chemical industries.Q: What is the recommended replacement interval for the cartridges?
A: Replacement is generally recommended every 6-12 months, depending on dust load, operating conditions, and usage intensity.Q: What is the cartridge cleaning and reuse process?
A: Depending on material, cartridges can be washed and reused. Clean according to manufacturer guidelines using compressed air or gentle washing, ensuring the cartridge is fully dried prior to reinstallation.Q: Where are these filter cartridges exported and how are they packaged?
A: We export our filter cartridges across Southeast Asia, Europe, and the Middle East. Each unit is carefully packaged in export-grade materials to ensure safe handover.Q: What benefits do pleated filter cartridges offer over traditional options?
A: Pleated cartridges provide an increased surface area, promoting higher airflow up to 2000 m3/h, longer service life, and superior filtration efficiency up to 99.99% compared to non-pleated styles.Technical Details
