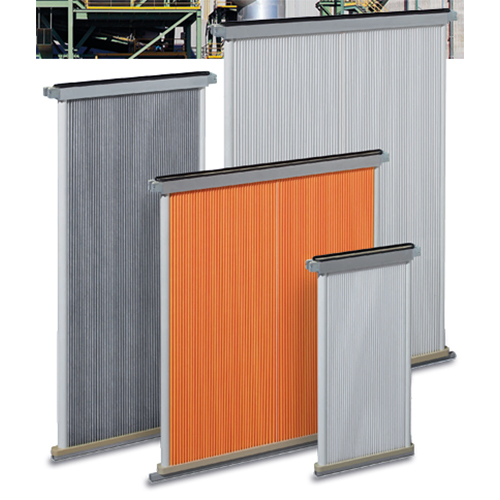

Filter Panels Dia 497,1065 mm MULTITEX

Name: Filter Panels Dia 497,1065 mm MULTITEX
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 5800 INR
Availability: InStock

Price 5800 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filter Panels Dia 497,1065 mm MULTITEX Specification

Filter Media
Multi-layered synthetic or cellulose

Inlet Diameter
Customized as per system

Pore Size
1-25 micron

Shape
Rectangular / Flat Panel

Filter Rating
1 to 25 micron

Pressure
Operational Pressure Range: 2.5 bar

Outlet Diameter
Customized as per system

Sealing
Polyurethane End Caps

Product Type
MULTITEX Filter Panel

Material
Other

Type
Filter Panel

Cartridge Style
Panel Filter

Diameter
497 mm, 1065 mm

Efficiency
Up to 99.9%

Application
Industrial Filtration, Dust Collection, Air Filtration Units

Custom Sizes
Available upon request

Replacement Cycle
Subject to dust load and application

Features
High Dust Holding Capacity, Easy Installation and Maintenance, Washable (for synthetic variants)

Maximum Air Flow
Depends on system requirement

Operating Temperature
-20C to +80C

Colour
White, Grey, Orange

End Cap Material
Polyurethane or Metal

Filter Panels Dia 497,1065 mm MULTITEX Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filter Panels Dia 497,1065 mm MULTITEX

APPLICATIONS

Powder coating
Separation of enamel powder
Foundries
Synthetics industry
Chemical industry
Food industry
Sand blasting plants

ADVANTAGES

Low pressure drop
Filter media customised to application
Excellent cleaning ability
Media available with coating or ePTFE membrane
Optimized performance at high air-to-cloth ratios

FILTER MEDIA OPTIONS

(Customized to application)

Non-wovens
Needle felts made of polyester
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80°C
Metal parts: Galvanized steel
Cleanable by compressed air
High-performance MULTITEX media technology

SPECIAL TYPES AVAILABLE

Temperature resistant up to 120°C
Suitable for ATEX applications (all zones)
Certified for food production (EC & US FDA regulations)
Stainless steel metal parts
Custom individual solutions

ACCESSORIES

Solenoid valves
Valve control systems

INSTALLATION

Raw gas side installation (standard)

TECHNICAL DATA

497 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1

610 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5

717 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7

1045 / 1065 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

A [mm]	A [mm]	B [mm]	C [mm]	Length L [mm]	Filter Area [m²]
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

Get excellent air quality with MULTITEX Filter Panels, available in towering diameters of 497 mm and 1065 mm. Renowned for high dust holding capacity, these famed panels ensure remarkable savings through extended lifespans and easy maintenance. Choose from vibrant colors like white, grey, and orange, with robust end caps in polyurethane or metal. Suitable for operational temperatures from -20C to +80C, these panels offer access to optimal efficiency-up to 99.9%. Custom sizes are available upon request, making them perfect for varied industrial filtration applications across India.

Famed MULTITEX Panels: Application Areas & Key Features

MULTITEX Filter Panels (Dia 497, 1065 mm) are engineered for dust collection, air filtration units, and industrial filtration. Their excellent design supports both rectangular and flat panel usage, making them adaptable for diverse needs. Crafted from synthetic fibers, polyester, or cellulose blends, they feature high dust holding capacity, are washable (synthetic variants), and allow easy installation. These panels excel in stringent environments, delivering up to 99.9% filtration efficiency-ideal for process plants, workshops, and commercial facilities.

Timely Delivery and Domestic Offers: Packing & Dispatch

Our delivery process ensures prompt packing & dispatch, allowing you to access top-quality MULTITEX filter panels swiftly across India's main domestic markets. We offer competitive list prices and can provide sample panels upon request following our sample policy. Each filter is securely packed for safe transit, ensuring it reaches you in excellent condition. Contact us for special offers on bulk orders, and let our team guide you through every step from selection to final delivery.

FAQ's of Filter Panels Dia 497,1065 mm MULTITEX:

Q: How do I determine the correct replacement cycle for my filter panel?

A: The replacement cycle of the filter panel depends on dust load and the specific application. Regular inspection is recommended to maintain optimal efficiency.

Q: What is the process for customizing the inlet and outlet diameters?

A: You can request custom inlet and outlet diameters as per your system requirements; our team will guide you through the specification and order process.

Q: Where can MULTITEX Filter Panels be used?

A: These filter panels are suitable for industrial filtration, dust collection systems, and air filtration units in workshops, factories, and process plants.

Q: What are the benefits of the MULTITEX Filter Panel design?

A: Key benefits include high dust holding capacity, excellent filtration efficiency (up to 99.9%), and easy installation and maintenance-resulting in long-term savings.

Q: How does the washable feature benefit synthetic variants?

A: The washable feature allows for repeated use of synthetic filter variants, reducing ongoing costs and ensuring sustained performance over multiple cleaning cycles.
