Food Industry

• Application
• Food industry filtration, liquid and air purification

• Cartridge Style
• Other, Pleated, Replaceable, with Thread

• Diameter
• 115 mm

• Efficiency
• Up to 99.98%

• Filter Media
• Other, Microfiber, Polypropylene, Stainless Steel mesh

• Filter Rating
• 0.2 to 50 microns

• Inlet Diameter
• Customizable as per system requirements

• Material
• Other

• Outlet Diameter
• Customizable as per system requirements

• Pore Size
• Variable (as per specification requirements)

• Pressure
• Maximum 7 bar

• Product Type
• Industrial Filter Cartridge

• Sealing
• EPDM, Silicone, Viton options

• Shape
• Cylindrical

• Type
• Other, Filter Cartridge

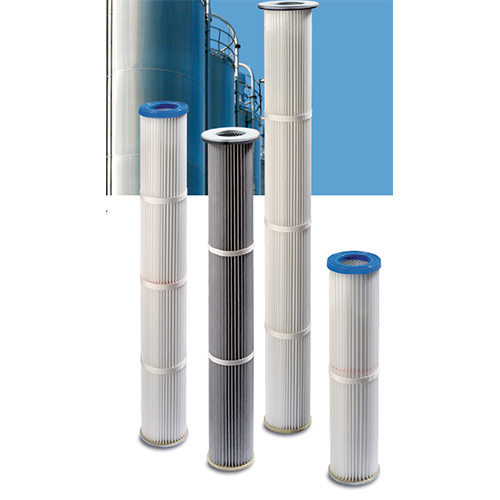

• Application
• Food industry liquid and air filtration

• Cartridge Style
• Other, Pleated, cylindrical cartridge

• Diameter
• 130 mm

• Efficiency
• High filtration efficiency, up to 99.98%

• Filter Media
• Other, Synthetic, Microfiber, or Polyester

• Filter Rating
• 0.2 to 50 microns

• Inlet Diameter
• 130 mm

• Material
• Other

• Outlet Diameter
• 130 mm

• Pore Size
• Customizable as per requirement

• Pressure
• 5 bar (maximum)

• Product Type
• Food Industry Filter Cartridge

• Sealing
• EPDM/Silicone/Viton gaskets available

• Shape
• Cylindrical

• Type
• Other, Filter Cartridge

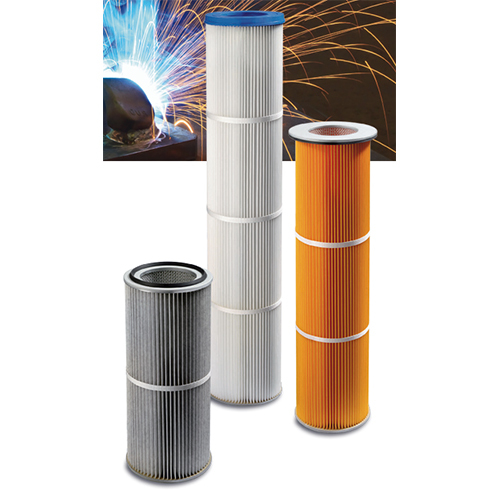

• Application
• Food and Beverage Industry Filtration

• Cartridge Style
• Other, Pleated

• Diameter
• 228 mm

• Efficiency
• 99.9%

• Filter Media
• Other, Polyester, Glass Fiber

• Filter Rating
• 1-100 micron

• Inlet Diameter
• 228 mm

• Material
• Other

• Outlet Diameter
• 228 mm

• Pore Size
• As per micron rating

• Pressure
• Maximum Operating Pressure 6 bar

• Product Type
• Industrial Filter Cartridge

• Sealing
• Polyurethane End Caps

• Shape
• Cylindrical

• Type
• Other, Filter Cartridge

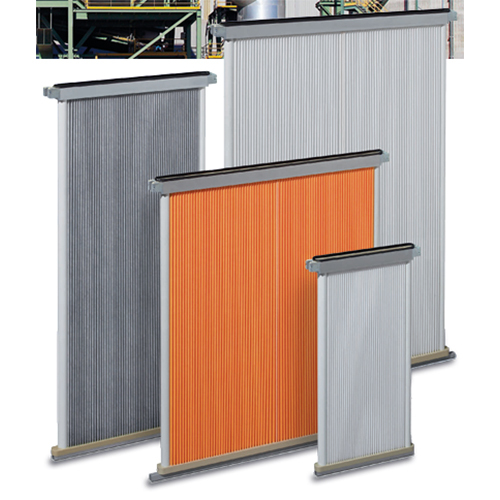

• Application
• Food Industry Dust Filtration

• Cartridge Style
• Other, Panel / Cassette

• Diameter
• 497 mm, 1065 mm

• Efficiency
• Up to 99%

• Filter Media
• Other, Pleated Filter Media

• Filter Rating
• Fine filtration (up to 1 micron)

• Inlet Diameter
• Customizable

• Material
• Other

• Outlet Diameter
• Customizable

• Pore Size
• Varies (specified as per requirement)

• Pressure
• Up to 4 bar

• Product Type
• Industrial Air Filter

• Sealing
• PU or Rubber Gasket

• Shape
• Rectangular

• Type
• Other, Filter Panel
