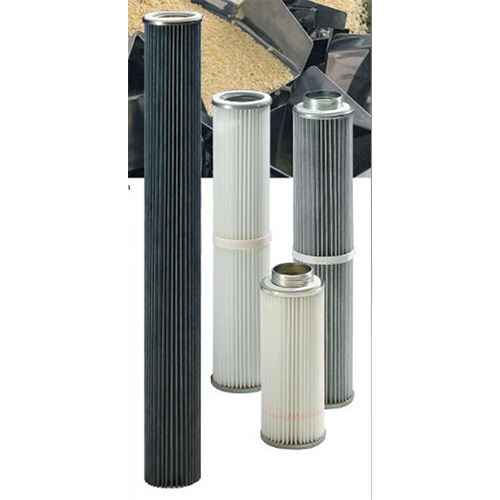

Pneumatic conveying Filter Cartridges Dia 115 mm with Thread

Name: Pneumatic conveying Filter Cartridges Dia 115 mm with Thread
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 3100 INR
Availability: InStock

Price 3100 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Pneumatic conveying Filter Cartridges Dia 115 mm with Thread Specification

Inlet Diameter
115 mm

Filter Rating
0.3 micron to 10 micron (customizable)

Filter Media
High-efficiency synthetic fiber or cellulose blend

Outlet Diameter
Threaded connection, compatible with 115 mm opening

Pore Size
Varies; typical range 0.3 - 10 micron

Sealing
Rubber or polyurethane gasket sealing

Pressure
Max 6 bar

Shape
Cylindrical, pleated

Product Type
Pneumatic Conveying Filter Cartridge

Material
Other

Type
Filter Cartridge

Cartridge Style
Pleated with thread

Diameter
115 mm

Efficiency
Up to 99.99%

Application
Pneumatic conveying systems, Dust Collection, Air filtration

Air Flow Rate
Up to 2000 m3/h per cartridge (varies by length and filter type)

Cleaning Method
Pulse-jet, reverse air, or manual

End Cap Type
Threaded metal or plastic end cap

Color
White, black, or gray depending on media

Weight
Varies with length and media, typically 0.5-2.5 kg

Dust Holding Capacity
High dust holding capacity design

Compatibility
Compatible with standard pneumatic conveying housings

Length
Available from 250 mm to 1200 mm

Surface Finish
Anti-static or standard

Replacement Cycle
6 to 12 months or as per dust load

Temperature Resistance
Up to 80C (varies by media)

Mounting
Threaded mount for easy installation and replacement

Standards
Meets ISO 16890 / EN 779 standards

Pneumatic conveying Filter Cartridges Dia 115 mm with Thread Trade Information

Minimum Order Quantity
4 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Pneumatic conveying Filter Cartridges Dia 115 mm with Thread

APPLICATIONS

Pneumatic conveying
Glass industry
Filling stations
Production of synthetic parts
Pharmaceutical industry
Food industry

ADVANTAGES

Easy and quick installation by screwing into filter holder
No tools required
Filter medium customized to application
Star-shaped bottom design

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Glass fibre
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of hazardous dusts

FEATURES

Max operating temperature: 80 C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 220C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holders
Solenoid valves
Valve control systems

INSTALLATION TYPES & DIMENSIONS

A. Raw Gas Side Installation Thread Rd 60

Dimensions:

115
100
Inner 72
Length: L (varies)
Filter holder
Hole in plate

B. Raw Gas Side Installation Thread Rd 72

Dimensions:

115
100
Inner 80
Length: L
Filter holder
Hole in plate

C. Raw Gas Side Installation Thread Rd 74

Dimensions:

115
100
Inner 85 / 4 M10 (bolt pattern)
Length: L
Filter holder

TECHNICAL DATA (Length & Filter Area)

Thread Rd 60 Accessory: Filter Holder 310-001-000043

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.4
115	602	0.8
115	982	1.3
115	1202	1.6

Thread Rd 72 Accessory: Filter Holder 310-001-000071

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.5
115	602	1.0
115	982	1.6
115	1202	2.0

Thread Rd 74 Accessory: Filter Holder 310-001-000045

(mm)	Length L (mm)	Filter Area (m)
115	202	0.3
115	302	0.5
115	602	1.0
115	982	1.6
115	1202	1.9

Unlock a phenomenal deal for a limited time on our top-tier Pneumatic Conveying Filter Cartridges, Dia 115 mm with threaded mounting! Available in lengths from 250 mm to 1200 mm, these prime cartridges deliver fresh, high-efficiency air filtration with up to 99.99% efficiency. Choose from robust anti-static or standard finishes and colors (white, black, or gray). With high dust holding capacity, pulse-jet cleaning compatibility, and ISO 16890 / EN 779 approvals, they promise exceptional value for plant dust collection, air purity, and pneumatic material transfer.

Optimal Filtration for Industrial Plants

Designed for pneumatic conveying systems, these filter cartridges fit seamlessly into industrial plants and dust collection units. Simply screw the threaded end cap into compatible housings for prime installation and quick replacement. Their cylindrical, pleated style and customizable pore rating ensure optimal filtration for plant air systems, delivering fresh, contaminant-free air across a broad range of applications including air separation, dust collection, and material handling.

Terms, Export Markets, and Accredited Shipping

Shipped goods undergo rigorous valuation and are supplied with certified documentation for ISO 16890 / EN 779 compliance. Our main export markets include Europe, Asia, the Middle East, and Africa. Goods handover occurs post quality-check, with adaptable payment terms including advance, letter of credit, or net settlement. Trust our strong logistics and certifications for punctual delivery and assured quality wherever your facility is located.

FAQ's of Pneumatic conveying Filter Cartridges Dia 115 mm with Thread:

Q: How are the Pneumatic Conveying Filter Cartridges installed?

A: The cartridges feature a threaded mount, enabling straightforward screwing into compatible pneumatic conveying housings for easy installation and replacement.

Q: What applications are these filter cartridges suitable for?

A: They are ideal for pneumatic conveying systems, dust collection applications, and general air filtration in industrial plants, especially where high efficiency and dust containment are critical.

Q: When should I replace the filter cartridges?

A: Replacement is typically recommended every 6 to 12 months or as per dust load and plant operating conditions to maintain optimal air quality and system performance.

Q: Where are these filter cartridges exported to?

A: Our filter cartridges are primarily exported to Europe, Asia, the Middle East, and Africa, serving a wide range of industrial clients and suppliers globally.

Q: What benefits do the anti-static and standard surface finishes offer?

A: The anti-static finish reduces the risk of static charge buildup in sensitive environments, while the standard finish suits general dust filtration needs, both ensuring safety and efficient performance.
