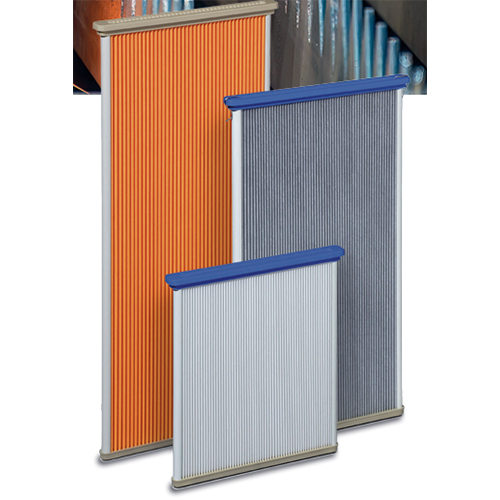

Filter Panels Dia 497,1065 mm MULTITEX

Name: Filter Panels Dia 497,1065 mm MULTITEX
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 5400 INR
Availability: InStock

Price 5400 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filter Panels Dia 497,1065 mm MULTITEX Specification

Inlet Diameter
N/A (Panel Design)

Shape
Rectangular Panel

Sealing
Polyurethane/EPDM Gasket Available

Filter Rating
1 micron (customizable)

Filter Media
Non-woven Synthetic, Spunbond Polyester, Pleated Material

Outlet Diameter
N/A (Panel Design)

Pore Size
Varies from 0.5 to 10 micron (based on configuration)

Pressure
Maximum Differential Pressure 1500 Pa

Product Type
Filter Panel MULTITEX

Material
Other

Type
Filter Panel

Cartridge Style
Rectangular Panel Type

Diameter
497 mm, 1065 mm

Efficiency
Up to 99.9%

Application
Industrial Dust Collection, Air Filtration Systems

End Cap Material
ABS/PU

Custom Sizes
Available on Request

Operating Temperature
Up to 120C (Higher Optional)

Replacement Interval
6-12 months (Depending on use)

Flow Rate
Up to 2000 m3/hr (Depending on unit size)

Color
White, Grey, Orange (as shown)

Cleaning Method
Pulse Jet / Reverse Air

Installation
Easy Fit - Retrofit Possible

Frame Material
Galvanized Steel/Aluminum

Filter Panels Dia 497,1065 mm MULTITEX Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filter Panels Dia 497,1065 mm MULTITEX

APPLICATIONS

Powder coating
Separation of enamel powder
Foundries
Synthetics industry
Chemical industry
Food industry
Sand blasting plants

ADVANTAGES

Low pressure drop
Filter media customised to application
Excellent cleaning ability
Media available with coating or ePTFE membrane
Optimized performance at high air-to-cloth ratios

FILTER MEDIA OPTIONS

(Customized to application)

Non-wovens
Needle felts made of polyester
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80°C
Metal parts: Galvanized steel
Cleanable by compressed air
High-performance MULTITEX media technology

SPECIAL TYPES AVAILABLE

Temperature resistant up to 120°C
Suitable for ATEX applications (all zones)
Certified for food production (EC & US FDA regulations)
Stainless steel metal parts
Custom individual solutions

ACCESSORIES

Solenoid valves
Valve control systems

INSTALLATION

Raw gas side installation (standard)

TECHNICAL DATA

497 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1

610 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5

717 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7

1045 / 1065 Series

A (mm)	A (mm)	B (mm)	C (mm)	Length L (mm)	Filter Area (m²)
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

A [mm]	A [mm]	B [mm]	C [mm]	Length L [mm]	Filter Area [m²]
497	517	434	480	950	2.4
497	517	434	480	1260	3.2
497	517	434	480	1555	4.1
610	630	560	592	950	3.2
610	630	560	592	1260	4.4
610	630	560	592	1555	5.5
717	737	675	700	950	4.0
717	737	675	700	1260	5.4
717	737	675	700	1555	6.7
1045	1065	1050	1030	950	5.8
1045	1065	1050	1030	1260	7.4
1045	1065	1050	1030	1555	9.4

Explore the praiseworthy Filter Panels Dia 497, 1065 mm MULTITEX - a hot-selling solution designed for exquisite air filtration in industrial settings. Decorated with a robust galvanized steel/aluminum frame and engineered for up to 99.9% efficiency, these panels are available in reduced prices for a limited time. With installation made easy and custom sizes on offer, it's truly a last chance deal for a versatile and durable cartridge-style filter. Suitable for demanding conditions up to 120C, these exquisite panels deliver superior dust collection performance.

Directions, Media & Application for MULTITEX Filter Panels

To ensure optimal performance, install the MULTITEX Filter Panels with the correct airflow direction as indicated on each unit. Compatible with a wide array of application media, they excel at filtering dust and contaminants from industrial air streams. Designed for use in dust collection systems, these panels are perfect for factories, workshops, mining operations, and general industrial filtration, where consistent, high-efficiency dust removal is essential.

Export Markets, Packaging & Sample Policy

Estimate your global filtration needs confidently-MULTITEX Filter Panels are dispatched to key export markets, including Europe, Asia, and the Middle East. Professionally packaged for safe transit, each unit arrives protected and ready for installation. We offer samples upon request to help you assess quality before bulk orders; our efficient dispatching ensures rapid delivery. Engage with us today for praiseworthy service and competitive offers for your tailored requirements.

FAQ's of Filter Panels Dia 497,1065 mm MULTITEX:

Q: How do I install the MULTITEX Filter Panels for optimal performance?

A: Installation is straightforward; simply follow the airflow direction markings on the panel. The panels are easy-fit and retrofittable, fitting most industrial dust collection systems. Ensure a snug seal to maximize filtration efficiency.

Q: What is the maximum operating temperature for these filter panels?

A: These filter panels operate reliably up to 120C. For environments requiring higher temperature resistance, optional configurations are available upon request.

Q: When should the MULTITEX Filter Panels be replaced?

A: It's recommended to replace the filter panels every 6 to 12 months, depending on usage intensity and specific application demands. Regular inspection helps maintain peak filtration performance.

Q: Where can these panels be used?

A: MULTITEX Filter Panels are suited for industrial dust collection and air filtration systems in facilities such as manufacturing plants, workshops, and mining sites.

Q: What are the main benefits of using MULTITEX Filter Panels?

A: Key advantages include up to 99.9% filtration efficiency, customizable sizes, robust frame construction, and compatibility with several dust and fume extraction systems, ensuring cleaner air and extended equipment life.

Q: How can I request custom sizes or a sample before ordering in bulk?

A: Simply contact our sales team to discuss your specifications. We offer custom sizing and samples to help you evaluate before making a large purchase.
