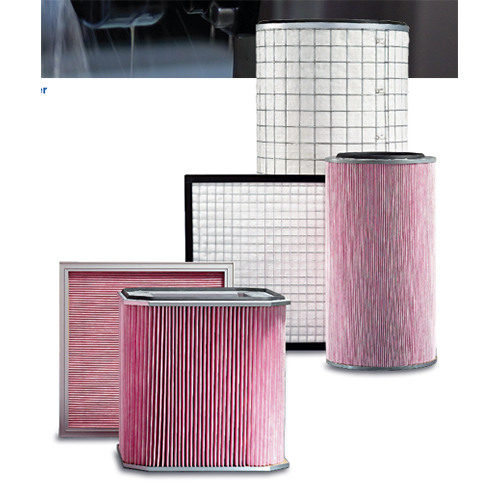

Send InquiryFilter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390 , 500 mm)
Price 4200 INR/ Piece
MOQ : 2 Pieces
Filter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390 , 500 mm) Specification
- Pore Size
- 0.1 m - 1.0 m
- Pressure
- Operating range 0.1-1.5 bar
- Shape
- Cylindrical and Rectangular
- Filter Media
- Micro-glass fiber with supporting mesh
- Filter Rating
- 0.1 m to 1 m
- Sealing
- Polyurethane or Neoprene gasket
- Inlet Diameter
- Customizable based on application
- Outlet Diameter
- Customizable based on application
- Product Type
- Filter Element for Oil Mist/Emulsion Mist/Aerosols
- Material
- Other
- Type
- Separator Filter Element
- Cartridge Style
- Cylindrical and Panel
- Diameter
- 390 mm, 500 mm
- Efficiency
- Up to 99.95%
- Application
- Oil mist, emulsion mist, and aerosol separation in industrial air filtration and machinery ventilation systems
- End Cap Construction
- Galvanized steel or aluminum
- Mounting Type
- Flange or gasket mounted
- Flow Rate
- Up to 1200 m3/h (depending on size and application)
- Weight
- Approx. 2-5 kg (based on model)
- Maintenance
- Dry or wet cleaning (where applicable)
- Standards
- Meets ISO 16890 or EN 1822 guidelines (on request)
- Color
- Pink filter media with metal/mesh support
- Typical Industries
- Metalworking, CNC machining, chemical, pharmaceutical, and food processing
- Temperature Resistance
- Up to 80C
- Replacement Interval
- As per contaminant load, typically 6-12 months
Filter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390 , 500 mm) Trade Information
- Minimum Order Quantity
- 2 Pieces
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 7 Days
About Filter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390 , 500 mm)
APPLICATIONS
- Oil spraying systems
- Machining centres
- Metal forming processes
- Minimal lubrication systems (MQL)
ADVANTAGES
- Filter efficiency 1 mg/m possible
- Efficiency up to 99% (12.5 m particles)
- Highest storage capacity
- Long service life
- Low pressure loss
- Compact design
- Exchangeable pre-filter
FILTER MEDIUM
- Multistage filter medium specially developed for separation of liquid particles
- High storage capacity due to multiple filter stages
- Exchangeable pre-filter for extended service life
- Efficiency: 99% for particle sizes 12.5 m
FEATURES
- Design available as filter cartridges or filter cassettes
- All standard sizes and installation systems available
- Maximum operating temperature: 80C
- Metal parts: Galvanized steel
SPECIAL TYPES AVAILABLE
- Temperature resistant up to 100C
- Stainless steel metal parts
- Custom individual solutions
INSTALLATION
- Raw gas side installation with tie rod
PERFORMANCE REFERENCE
(Tested configuration example 500 1000 mm)
- Filter area: 18 m
- Filter medium: Type 061 + pre-filter
- Air-to-cloth ratio: 65 m/mh
- Air volume: 1200 m/h
- Aerosol concentration: 100 mg/m
TECHNICAL DATA
Select the venerable Filter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390, 500 mm) for incomparable industrial air filtration. Available with lavish pink filter media supported by durable metal mesh and end caps of galvanized steel or aluminum, these separator filter elements deliver up to 99.95% efficiency and withstand temperatures up to 80C. Advance Purchase options are available for cylindrical or panel cartridges, featuring customizable inlets and outlets. Add to Cart for superior oil and aerosol separation in high-demand sectors like CNC machining, pharmaceuticals, and food processing.
Versatile Usage & Application Features
Designed for industrial air filtration systems, these filter elements are ideally suited for oil mist, emulsion mist, and aerosol separation in metalworking, chemical, and food industries. Engineered with a robust construction, they ensure optimum performance on machinery ventilation surfaces and meet rigorous ISO and EN standards. The advanced microfiber glass and mesh structure provides outstanding filtration efficiency while supporting adaptable mounting, making them a trustworthy choice for both new and replacement installations.
Global Supply, Competitive Terms, & Swift Delivery
As a leading exporter, manufacturer, and supplier from India, we supply these filter elements to main export markets worldwide. Payment can be charged through secure and flexible terms to suit every client. Delivery time is optimized for prompt dispatch and timely handover of goods, ensuring minimal downtime for your operations and seamless integration into your maintenance cycles regardless of your industrial sector.
Versatile Usage & Application Features
Designed for industrial air filtration systems, these filter elements are ideally suited for oil mist, emulsion mist, and aerosol separation in metalworking, chemical, and food industries. Engineered with a robust construction, they ensure optimum performance on machinery ventilation surfaces and meet rigorous ISO and EN standards. The advanced microfiber glass and mesh structure provides outstanding filtration efficiency while supporting adaptable mounting, making them a trustworthy choice for both new and replacement installations.
Global Supply, Competitive Terms, & Swift Delivery
As a leading exporter, manufacturer, and supplier from India, we supply these filter elements to main export markets worldwide. Payment can be charged through secure and flexible terms to suit every client. Delivery time is optimized for prompt dispatch and timely handover of goods, ensuring minimal downtime for your operations and seamless integration into your maintenance cycles regardless of your industrial sector.
FAQ's of Filter Elements for Separators Oil Mist, Emulsion Mist & Aerosols (Dia 390 , 500 mm):
Q: How do these filter elements enhance air quality in industrial settings?
A: These filter elements efficiently separate oil mist, emulsion mist, and aerosols with up to 99.95% filtration efficiency, significantly improving air quality and ensuring compliance with industry standards.Q: What is the recommended replacement interval for these filters?
A: Typically, these filters should be replaced every 6 to 12 months, depending on the application's contaminant load and operating environment.Q: When should cleaning or maintenance be performed?
A: Cleaning should be undertaken as needed based on the application's dust and mist load. Both dry and wet cleaning methods are applicable where suitable for the filter type.Q: Where can these filter elements be installed?
A: These elements can be mounted via flange or gasket on various industrial machinery, including metalworking, CNC machining, chemical, and food processing equipment ventilation systems.Q: What is the benefit of the pink filter media with metal/mesh support?
A: The pink filter media ensures robust filtering capacity, while the metal/mesh support provides mechanical strength and durability for longer operational life.Q: How is the flow rate capacity determined for each filter element?
A: Flow rate capacity, up to 1200 m3/h, depends on the element's size and the specific application requirements.Technical Details
