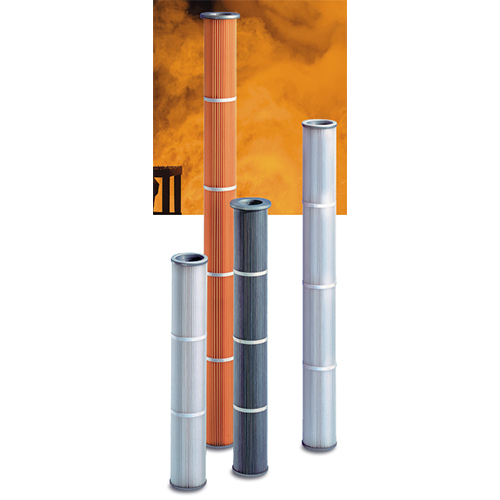

colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000)

Send Inquiry

Request To Call Back

colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000)

Name: colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000)
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 4500 INR
Availability: InStock

Price 4500 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000) Specification

Pressure
Recommended 1.2-3 bar

Sealing
Polyurethane end caps

Outlet Diameter
Customizable as per requirement

Filter Rating
MERV 11-15 (As per media)

Inlet Diameter
Customizable as per requirement

Shape
Cylindrical

Pore Size
2-5 micron

Filter Media
Pleated Synthetic/Cellulose Media

Product Type
Colour Pigments Production Filter Cartridge

Material
Other

Type
Production Filter Cartridge

Cartridge Style
Pleated (Plitex 3000)

Diameter
160 mm

Efficiency
Up to 99.9%

Application
Colour pigment filtration, Dust collection, Powder coating plants, Chemical industry

Length
400 mm - 2000 mm (various standard lengths available)

Color
White, grey, orange (varies by grade and application)

Flow Direction
Inside to Outside

Temperature Resistance
Up to 120C (media dependent)

Maximum Air Flow
Varies with size and type; typical 3000 m3/hr per cartridge

Surface Finish
Antistatic and Water/Oil-repellent available

Internal Core
Galvanized or Stainless Steel (option)

Cleaning Method
Pulse Jet / Reverse Air

Mounting
Open/Closed end - Top/Bottom flange adaptable

colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000) Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000)

APPLICATIONS

Production of colour pigments
Production of synthetics
Metal working
Foundries
Metal spraying

ADVANTAGES

Installation without tools by thread
Interchangeable with filter bags
Versatile use across industries
Suitable for high-performance filtration

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Stainless steel weave
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 400C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holder for thread
Short injector 310-002-000001
Solenoid valves
Valve control systems

INSTALLATION TYPES

Raw gas side installation Thread Rd 100
Clean side installation
Accessory: Filter Holder 310-001-000038

TECHNICAL DATA

160 mm

(mm)	Length L (mm)	Filter Area (m)
160	602	1.6
160	982	2.7
160	1202	3.3
160	1502	4.1
160	2002	5.6

Experience wondrous efficiency and commanding performance with colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000). Favored for their inestimable durability and favorable reviews, these cartridges are designed to meet the rigorous demands of pigment filtration and dust collection. Available in various lengths (400-2000 mm), they feature antistatic and water/oil-repellent surfaces, galvanised or stainless-steel cores, and customizable inlet/outlet diameters. Access superior protection against harsh conditions with temperature resistance up to 120C and filtration efficiency up to 99.9%. Perfect for promotion in chemical and powder coating industries across India, these cartridges promise optimal value and reliability for manufacturers, exporters, and suppliers alike.

Innovative Features & Versatile Applications

Engineered for excellence, the Plitex 3000 cartridges boast special features such as pleated synthetic/cellulose filter media, antistatic and hydrophobic finishes, and high MERV ratings of 11-15. They are tailored for a variety of demanding surface applications including colour pigment filtration, powder coating plants, and dust collection in the chemical industry. Their robust cylindrical design and customisable flange fittings ensure adaptability across diverse industrial environments, delivering superior air quality and process efficiency.

Streamlined Delivery, Secure Packaging & Seamless Exchanges

Each colour pigments-Production Filter Cartridge Dia 160 mm (Plitex 3000) is promptly dispatched according to customer specifications, ensuring swift turnaround times. Payment terms are flexible and designed for fair valuation, accommodating standard industrial protocols. Secure, damage-resistant packaging preserves the integrity of every cartridge during shipment. Our exchange policy assures hassle-free return or replacement processes if required, guaranteeing customer satisfaction at every stage of the supply chain.

FAQ's of colour pigments-Production Filter Cartridges Dia 160 mm (Plitex 3000):

Q: How can the filter cartridges be customized for specific inlet and outlet diameters?

A: Filter cartridges can be tailored to fit unique installation requirements by specifying the desired inlet and outlet diameters during the ordering process, ensuring seamless integration in your filtration system.

Q: What is the recommended cleaning process for these cartridges?

A: The cartridges are designed for Pulse Jet or Reverse Air cleaning methods, which effectively eject accumulated dust, maximizing cartridge life and operational efficiency.

Q: When should the filter cartridges be replaced for optimal performance?

A: Cartridges should be exchanged based on pressure drop and operational hours, typically when air flow decreases or at intervals recommended by your maintenance schedule.

Q: What are the key benefits of using Plitex 3000 in pigment and powder applications?

A: Plitex 3000 cartridges provide up to 99.9% filtration efficiency, outstanding temperature resistance, and robust construction, making them ideal for challenging pigment, powder coating, and chemical industry applications.

Q: Where can these cartridges be employed for maximum effectiveness?

A: They are best suited for colour pigment filtration plants, dust collection systems, chemical processing units, and powder coating facilities, where high-quality air filtration is paramount.
