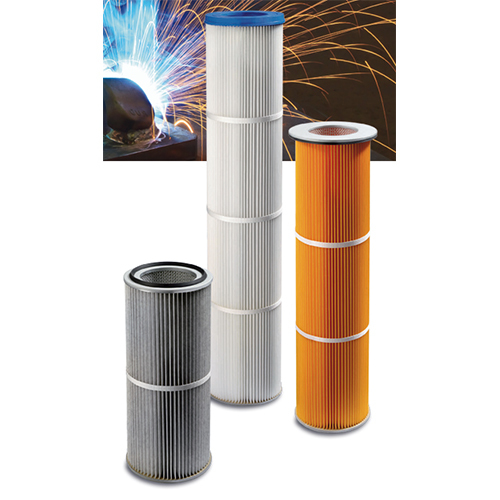

Filter Cartridges Dia 228 mm

Name: Filter Cartridges Dia 228 mm
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 4600 INR
Availability: InStock

Price 4600 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filter Cartridges Dia 228 mm Specification

Inlet Diameter
Same as cartridge diameter (228 mm), or as per housing requirements

Filter Media
Pleated synthetic, cellulose, polyester, or micro-glass fiber

Sealing
PU (polyurethane) or rubber gasket end caps for leak-proof sealing

Pressure
Recommended change-out pressure: 2.5 bar

Pore Size
1-50 micron, depending on application

Filter Rating
1-10 micron or as specified

Shape
Cylindrical

Outlet Diameter
Custom as per industrial filter housing specifications

Product Type
Filter Cartridge

Material
Other

Type
Cartridge Filter

Cartridge Style
Pleated

Diameter
228 mm

Efficiency
Up to 99.99% at 0.3 microns (HEPA grade depends on filter media)

Application
Industrial dust collection, air filtration systems, welding fume extraction, powder coating, and general air purification

Color Options
White, grey, orange, or as per product line

Operating Temperature
Up to 80C (varies by filter media)

Length
Standard sizes: 1000 mm, 600 mm, 300 mm (custom lengths available)

Corrosion Resistance
Good, depending on material selection

Reusable
Washable & reusable or disposable types available

Weight
Approximately 2 - 5 kg (varies with size & material)

End Cap Material
Galvanized steel, plastic, or stainless steel

Mounting
Threaded or push-fit, as per housing design

Surface Area
Greater surface area due to pleated media

Recommended Flow Rate
1000-3000 m3/h (depends on cartridge size and application)

Filter Cartridges Dia 228 mm Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filter Cartridges Dia 228 mm

APPLICATIONS

Plasma cutting
Sand blasting
Food industry
Laser cutting
Mining industry
Chemical industry
Minimal lubrication processes

ADVANTAGES

Easy to clean
Flat and open pleats
Suitable for high dust concentrations
High mechanical wear resistance
Microporous filter media finish

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Stainless steel weave
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 400C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holder for snap lock
Venturi nozzle 310-002-000028
Short injector 310-002-000002
Solenoid valves
Valve control systems

INSTALLATION TYPES & TECHNICAL DATA

A. Clean Side Installation

(mm)	Length L (mm)	Filter Area (m)
228	602	3.0
228	982	5.0
228	1202	6.0

B. Raw Gas Side Installation Tie Rod

(mm)	Length L (mm)	Filter Area (m)
228	602	3.0
228	982	5.0
228	1202	6.0

C. Raw Gas Side Installation Step Mount

Accessory: Filter Holder 310-001-000023

(mm)	Length L (mm)	Filter Area (m)
228	605	3.0
228	985	5.0
228	1205	6.0

Get a splendid, top-tier filtration solution with our Filter Cartridges Dia 228 mm, crafted for inestimable performance in industrial applications. Choose fresh filter cartridges offering standard lengths of 1000 mm, 600 mm, and 300 mm-or opt for custom sizes. With operating temperatures up to 80C, these cartridges are available in reusable or disposable options, featuring corrosion-resistant galvanized steel, plastic, or stainless steel end caps. Enjoy greater surface area and exceptional efficiency up to 99.99% at 0.3 microns. Don't miss this hot deal-engineered for every dust collection and air purification need!

Versatile Usage & Innovative Features

Filter Cartridges Dia 228 mm stand out for their extensive usability in dust collection, welding fume extraction, powder coating, and general air purification. Designed with a pleated cylindrical shape and varied filter media-including synthetic, cellulose, polyester, and micro-glass fiber-these cartridges deliver high efficiency and remarkable surface area. Suitable for industrial filtration systems, they support both threaded and push-fit mounting and can be washed or disposed of as required by application demands.

Prompt Delivery & Premier Domestic Service

Dispatched swiftly to your location, Filter Cartridges Dia 228 mm come packaged in premium, secure materials to safeguard product integrity. The main domestic market includes industrial hubs across India, ensuring you get reliability alongside value. Ask for the current asking price to receive top-quality cartridges delivered punctually, supporting your operational continuity and peace of mind. Experience seamless supply and reliable service for your filtration needs.

FAQ's of Filter Cartridges Dia 228 mm:

Q: How do I choose the right length and filter media for my application?

A: Select the cartridge length and filter media based on your system's flow rate requirements, operating conditions, and particle filtration needs. Discuss your specific needs with our experts or refer to industrial guidelines for optimal performance.

Q: What applications are Filter Cartridges Dia 228 mm suitable for?

A: These cartridges are ideal for industrial dust collection, air filtration systems, welding fume extraction, powder coating operations, and general purification tasks requiring high efficiency and reliability.

Q: When should I replace or clean my cartridge filters?

A: Cartridge filters should be replaced or cleaned when the recommended change-out pressure of 2.5 bar is reached, or as indicated by reduced system efficiency. The frequency depends on application, environment, and filter type.

Q: Where are these filter cartridges manufactured and delivered?

A: Our Filter Cartridges Dia 228 mm are manufactured in India and delivered nationwide, particularly serving major industrial markets and zones across the country with prompt and secure logistics.

Q: What is the benefit of pleated media in these filter cartridges?

A: The pleated design ensures greater surface area, allowing enhanced dust and particle capture, longer filter lifespan, and improved air flow-making them both efficient and cost-effective for industrial use.
