Filter Cartridges Dia 324 , 327 mm MICROTEX

Send Inquiry

Request To Call Back

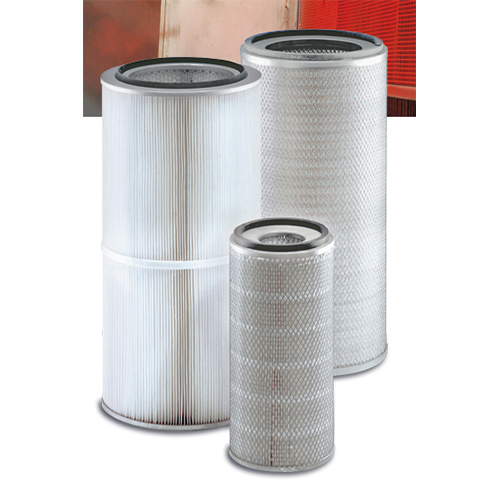

Filter Cartridges Dia 324 , 327 mm MICROTEX

Name: Filter Cartridges Dia 324 , 327 mm MICROTEX
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 4800 INR
Availability: InStock

Price 4800 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filter Cartridges Dia 324 , 327 mm MICROTEX Specification

Pressure
Max Operating Pressure: 4 bar

Outlet Diameter
Customizable (Based on Model)

Pore Size
Variable (Micro to Fine as per requirement)

Shape
Cylindrical

Filter Media
Polyester, Cellulose, Synthetic Fiber

Filter Rating
1 - 50 micron (as per variant)

Inlet Diameter
Customizable (Based on Model)

Sealing
PU Gasket, EPDM End Cap

Product Type
MICROTEX Replacement Filter Cartridges

Material
Other

Type
Filter Cartridge

Cartridge Style
Pleated

Diameter
324 mm, 327 mm

Efficiency
Up to 99.9% (Depending on Media)

Application
Industrial Dust Collector Systems, Air Filtration, Pollution Control

Replaceability
Interchangeable with leading OEMs

Color
White/Grey

Connection Type
Open/Closed with Seal

Length
600 mm, 1000 mm, 1200 mm (as per variant)

Flow Direction
Outside to Inside

Packaging
Individual Poly Bag/Wooden Carton

End Cap Material
Polyurethane, Metal

Temperature Resistance
Up to 80C (Depending on Media)

Recommended Cleaning
Pulse Jet, Reverse Air

Filter Cartridges Dia 324 , 327 mm MICROTEX Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filter Cartridges Dia 324 , 327 mm MICROTEX

APPLICATION

Shot blasting plants
Powder coating systems
Separation of welding fumes
Pharmaceutical industry
Safety filters
Recycling applications

ADVANTAGES

Up to 21 m filter area per filter element
Filter medium with Nano fibres available
Flame retardant media possible
Components certified for food production (on request)
High-efficiency fine dust filtration

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Cellulose
Polypropylene
Polyphenylensulfide (PPS)
Glass fibre
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature:
Cellulose: 65C
Other media: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 220C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom individual solutions

ACCESSORIES

Venturi nozzle 310-002-000014
Short injector 310-002-000003
Solenoid valves
Valve control systems
Air flow deflectors

INSTALLATION TYPES

Raw gas side installation with tie rod
Both ends open configuration

TECHNICAL DATA

A (mm)	Length L (mm)	B (mm)	I (mm)	S (mm)	Filter Area (m)
324	660	13	212	48	21
324	660		212		21
327	660	13	216	30	11
327	660		216		11

Introducing the must-have MICROTEX Filter Cartridges Dia 324, 327 mm-your ravishing solution for world-class air filtration and dust control! This heroic product, with lengths of 600 mm, 1000 mm, or 1200 mm, showcases unmatched efficiency of up to 99.9% (media dependent). Ending soon is our exclusive promotion for these cartridges, featuring sturdy polyurethane or metal end caps and high temperature resistance (up to 80C). Their interchangeable design fits leading OEMs, ensuring superior replaceability and versatility for industrial dust collector systems. Secure yours now before this promotion ends!

MICROTEX Filter Cartridges: Primary Competitive Edge and Application

MICROTEX Filter Cartridges Dia 324, 327 mm stand out as world-class performers in the industry, providing up to 99.9% filtration efficiency with a pleated, cylindrical design. Their heroic construction supports pulse jet and reverse air cleaning, maximizing operational lifespan. Specially suited for industrial dust collector systems and comprehensive air filtration, these cartridges are designed for easy, interchangeable use, ensuring seamless integration with top OEMs. Application is straightforward-just install and enjoy consistent, robust particle capture.

FOB Ports, Payment Terms, and Delivery Confidence

MICROTEX Filter Cartridges Dia 324, 327 mm are shipped promptly from major Indian FOB ports, ensuring secure and timely global shipment. Customers benefit from flexible payment terms, and typical delivery time is designed to minimize downtime. Each cartridge is individually packaged in poly bags or wooden cartons for safe transport. In case of concerns, our responsive exchange process guarantees customer satisfaction, making every shipment a confident choice for industrial filtration needs.

FAQ's of Filter Cartridges Dia 324 , 327 mm MICROTEX:

Q: How do I install MICROTEX Filter Cartridges Dia 324, 327 mm in my dust collector system?

A: Installation is straightforward; simply select the appropriate variant for your system's diameter and length requirements, then connect using the open or closed seal end. Ensure proper fit and secure the cartridge as per OEM guidelines.

Q: What primary benefits do these filter cartridges offer for industrial air filtration?

A: MICROTEX Filter Cartridges provide up to 99.9% filtration efficiency, support high temperature environments (up to 80C depending on media), and are compatible with major industrial dust collector systems. Their interchangeability and robust materials ensure long service life and consistent air quality.

Q: When should I replace or clean these filter cartridges?

A: Cartridges should be cleaned regularly via pulse jet or reverse air methods. Replacement timing depends on application intensity, but indicators include a significant drop in airflow or visible buildup of contaminants.

Q: Where are these filter cartridges manufactured and shipped from?

A: MICROTEX manufactures and ships these cartridges from facilities in India, utilizing major Indian FOB ports for efficient global distribution and reliable shipment times.

Q: What types of filter media are available in these cartridges?

A: These cartridges utilize polyester, cellulose, and synthetic fiber filter media. The choice of media depends on specific filtration needs and industry requirements, offering variable pore sizes from micro to fine.

Q: How does the exchange process work if I receive a defective cartridge?

A: If a defect is identified, contact customer service promptly with details. The company offers a structured exchange process to ensure you receive a fully functional replacement with minimal delay.
