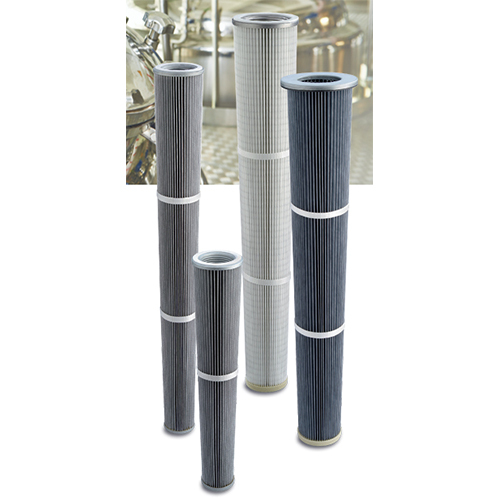

Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical

Name: Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 4900 INR
Availability: InStock

Price 4900 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical Specification

Outlet Diameter
As per vacuum cleaner model

Sealing
Polyurethane gasket sealing

Filter Media
Pleated synthetic or cellulose

Pressure
Max. 4 bar

Inlet Diameter
As per vacuum cleaner model

Filter Rating
Up to 1 micron

Pore Size
1-5 microns

Shape
Conical

Product Type
Industrial vacuum cleaner filter cartridge

Material
Other

Type
Filter Cartridge

Cartridge Style
Conical

Diameter
120 mm, 160 mm, 185 mm

Efficiency
Up to 99.9%

Application
Industrial vacuum cleaners, dust extraction systems, air filtration units

Color
White, grey, or custom as required

End Cap Material
Galvanized steel, polyurethane or plastic

Temperature Resistance
Up to 80C

Replacement Interval
6-12 months depending on usage

Length
Standard lengths from 300 mm to 1000 mm

Cleaning Method
Pulse jet/Reverse air compatible

Air Flow Capacity
Up to 2500 m3/h

Mounting Type
Top or bottom flange, customized as per requirement

Moisture Resistance
Yes, available with hydrophobic treatment

Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical

APPLICATIONS

Pharmaceutical industry
Silo ventilation
Pneumatic conveying
Industrial vacuum cleaners
Food production

ADVANTAGES

Efficient product recovery due to conical shape
Certified for use in food production
ePTFE membrane on filter side
Filter medium with micro pores

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Micro porous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 220C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Filter holders for threads
Solenoid valves
Valve control systems

INSTALLATION TYPES

A. 12080 mm

Raw Gas Side Installation Thread Rd 72

Accessory: Filter Holder 310-001-000071

(mm)	Length L (mm)	Filter Area (m)
120-80	302	0.5
120-80	602	1.0
120-80	982	1.6

B. 160115 mm

Raw Gas Side Installation Thread Rd 100

Accessory: Filter Holder 310-001-000038

(mm)	Length L (mm)	Filter Area (m)
160-115	302	0.7
160-115	602	1.5
160-115	982	2.5
160-115	1202	3.0

C. 185115 mm

Clean Side Installation

(mm)	Length L (mm)	Filter Area (m)
185-115	302	0.7
185-115	602	1.5
185-115	982	2.5
185-115	1202	3.1

Buy Online the grandiose and elite Industrial Vacuum Cleaner Filter Cartridges, available in conical shapes with diameters of 120, 160, and 185 mm. Crafted for valorous performance, our filter cartridges offer unrivaled efficiency up to 99.9% and a filter rating of 1 micron. Manufactured with polyester, cellulose, or advanced synthetic media, they ensure robust pressure resistance up to 4 bar and temperature endurance up to 80C. Grab yours with customizable colors, end caps, and mounting options-perfect for demanding dust extraction, industrial cleaning, and air filtration environments. Get superior results, durability, and hydrophobic treatment for moisture-laden spaces. Exported globally from India; your next elite solution awaits.

Competitive Advantages & Application Areas

These conical filter cartridges, engineered for industrial vacuum cleaners, excel in dust extraction and air filtration applications. Their high airflow capacity, advanced pleated media, and superior sealing deliver extended usage, frequent replacement reduction, and extraordinary efficiency, even in harsh environments. Ideal for manufacturing, workshops, and process industries, they accommodate both top and bottom flange mountings, providing versatility across a broad spectrum of installations. Their moisture and temperature resistance further ensure reliable performance worldwide.

Order Completion, Delivery, and Payment

Upon order completion, these premium filter cartridges are expertly prepared and handed over for prompt dispatch. Delivery timelines are tailored to your requirements, typically within standard industrial lead times. Samples are available on request for quality evaluation ahead of bulk orders. Flexible payment terms are offered to suit diverse purchasing preferences. Enjoy competitive sale prices and seamless transaction experience with trusted exporter, manufacturer, and supplier support directly from India.

FAQ's of Industrial vacuum cleaners Filter Cartridges Dia 120 - 160 - 185 mm Conical:

Q: How do I select the correct diameter for my vacuum cleaner filter cartridge?

A: Select between 120 mm, 160 mm, or 185 mm diameters according to your vacuum cleaner's inlet and outlet specifications. Customization options are available to match your specific industrial model requirements.

Q: What are the main usage areas for these filter cartridges?

A: These filter cartridges are widely used in industrial vacuum cleaners, dust extraction systems, and air filtration units. Their robust construction makes them ideal for manufacturing, workshops, and other industrial environments.

Q: When should I replace my filter cartridge?

A: It's recommended to replace the filter cartridge every 6-12 months, depending on your usage and operating environment, to maintain optimal filtration performance.

Q: Where are these filter cartridges manufactured and exported from?

A: Our filter cartridges are manufactured and supplied from India, with exports delivered globally to meet client requirements across diverse industries.

Q: What is the process for ordering samples or bulk quantities?

A: You may request a sample for quality assessment prior to bulk purchases. For orders, provide your required specifications, complete the transaction, and your order will be processed and dispatched per agreed delivery terms.

Q: What competitive benefit does the hydrophobic treatment offer?

A: The hydrophobic-treated filter cartridges resist moisture, ensuring longer life and effective performance even in humid or wet operational settings.
