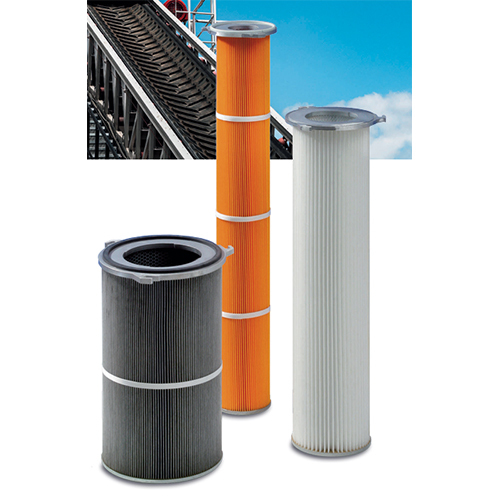

Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs)

Send Inquiry

Request To Call Back

Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs)

Name: Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs)
Brand: R+B FILTER MANUFACTURING ENTERPRISES PVT. LTD.
Price: 3550 INR
Availability: InStock

Price 3550 INR/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs) Specification

Outlet Diameter
Same as inlet diameter (open type)

Filter Rating
MERV 13 or equivalent

Shape
Cylindrical

Inlet Diameter
Corresponds to cartridge diameter: 150 mm, 214 mm, 327 mm

Sealing
Molded polyurethane or neoprene gasket

Pore Size
0.3-10 microns (depending on media)

Pressure
Maximum 4 bar

Filter Media
Polyester, cellulose, nanofiber, antistatic media available

Product Type
Pleated Air Filter Cartridge

Material
Other

Type
Filter Cartridge

Cartridge Style
Flanged Cartridge (3 Lugs)

Diameter
150 mm, 214 mm, 327 mm

Efficiency
Up to 99.99%

Application
Dust collection, air filtration, and industrial air pollution control systems

Temperature Resistance
Up to 80C continuous

Air Flow Rate
Varies by size and media, up to 3000 m3/h

Cleaning Mode
Pulse jet or reverse air cleaning compatible

Color
Depending on media selection (white, gray, orange, or black)

End Cap Type
Closed with central hole or fully open

Mounting
Top flange mount with 3 lugs

Flange Design
3 Lugs Flange for secure mounting

Surface Treatment
Electrogalvanized or powder-coated end caps

Replacement Interval
6-18 months depending on operating conditions

Height Options
Standard and custom lengths up to 1200 mm

Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs) Trade Information

Minimum Order Quantity
2 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs)

APPLICATIONS

Foundries
Recycling
Aviation industry
Metal spraying
Mining industry
Separation of oil and emulsion mist

ADVANTAGES

Technical guidance available
Filter medium customized to application
Robust 3-lug aluminium flange
Long service life
Venturi nozzle reusable

FILTER MEDIA OPTIONS

(Customized to application)

Polyester
Polypropylene
Polyphenylensulfide (PPS)
Polyimide
Glass fibre
Stainless steel weave
Other non-standard media

POSSIBLE EQUIPMENTS / TREATMENTS

Antistatic
Oil and water repellent
Microporous finish
Nano fibres
ePTFE membrane

Certification:

DIN EN 60335-2-69 Appendix AA
Suitable for filtration of health hazardous dusts

FEATURES

Maximum operating temperature: 80C
Metal parts: Galvanized steel
Cleanable by compressed air

SPECIAL TYPES AVAILABLE

Temperature resistant up to 400C
Suitable for ATEX applications (all zones)
Certified for food production (EC + US FDA)
Stainless steel metal parts
Custom solutions available

ACCESSORIES

Venturi Nozzles

310-002-000013 214 mm
310-002-000015 327 mm

Short Injectors

310-002-000001 150 mm
310-002-000002 214 mm
310-002-000003 327 mm

Solenoid valves

Valve control systems
Air flow deflectors

INSTALLATION

Raw gas side or clean side installation (as applicable)

TECHNICAL DATA

A. 150 mm PCD 205 mm

A (mm)	Length L (mm)	Filter Area (m)	O (mm)	I (mm)
150	605	1.5	187	85
150	985	2.5	187	85
150	1205	3.0	187	85

B. 214 mm PCD 266 mm

A (mm)	Length L (mm)	Filter Area (m)	O (mm)	I (mm)
214	605	3.0	246	146
214	985	5.0	246	146
214	1205	6.0	246	146

C. 327 mm PCD 393 mm

A (mm)	Length L (mm)	Filter Area (m)	O (mm)	I (mm)
327	605	6.0	368	210
327	605	10.0	368	210
327	985	10.0	368	210
327	985	16.0	368	210
327	1205	12.0	368	210
327	1205	16.0	368	210
327	1205	20.0	368	210

D. 327 mm PCD 365 mm (Raw Gas Side)

A (mm)	Length L (mm)	Filter Area (m)	O (mm)	I (mm)
327	605	6.0	340	210
327	605	10.0	340	210
327	985	10.0	340	210
327	985	16.0	340	210
327	1205	12.0	340	210
327	1205	16.0	340	210
327	1205	20.0	340	210

Presenting our redoubtable Filter Cartridges with diameters of 150, 214, and 327 mm, designed with a secure 3-lugs flange. Engineered for grandiose industrial air filtration needs, these cartridges guarantee extraordinary performance and efficiency-up to 99.99%. Choose from polyester, cellulose, nanofiber, or antistatic media for optimal results. Electrogalvanized or powder-coated end caps withstand up to 80C continuously. Available in custom lengths (up to 1200 mm), these cartridges suit a spectrum of applications. This ephemeral bargain is available for order today from a premier manufacturer, exporter, and supplier in India.

Versatile Use and Extra Features of Flanged Filter Cartridges

Engineered for adaptability, these Filter Cartridges (Dia 150, 214, 327 mm) are indispensable in dust collection, air filtration, and comprehensive air pollution control systems. Usage spans industrial environments where efficiency and durability are paramount. Unique features include electrogalvanized or powder-coated end caps, pulse jet or reverse air cleaning compatibility, and installation ease with the redoubtable 3-lugs flange. Custom sizes, a choice of filter media, and premium sealing make them extraordinary for a variety of demanding applications.

Delivery, Sample Policy, and Stock Availability

Our streamlined logistics ensure swift arrival and reliable fulfillment. Filter Cartridges are generally in stock, ready for immediate dispatch. Sample requests are welcomed-please contact us for details regarding sample policy and payment terms, designed to suit both large and small orders. With robust supply ability, manufacturers and distributors can be certain of consistent availability and dependable delivery for every order placed.

FAQ's of Filter Cartridges Dia 150, 214 , 327 mm (Flange 3 Lugs):

Q: How do I select the appropriate filter cartridge size for my application?

A: Selecting the right filter cartridge depends on your dust collection system's requirements, airflow rate, and space constraints. Determine the necessary diameter (150 mm, 214 mm, or 327 mm) and custom length based on the volume and application specifics.

Q: What are the primary benefits of using these filter cartridges in industrial settings?

A: Benefits include extraordinary filtration efficiency (up to 99.99%), high temperature resistance (up to 80C), compatibility with pulse jet and reverse air cleaning, and durable construction-making them suitable for demanding dust control and air quality management.

Q: Where are these filter cartridges commonly applied?

A: They are widely used in dust collection units, industrial air filtration systems, and pollution control equipment across manufacturing, processing, and similar industrial sectors.

Q: What is the process for ordering and receiving samples?

A: To request a sample, simply contact us with your specifications. Our logistics team will arrange quick shipment, and our sample policy and payment terms will be shared upon inquiry.

Q: When should the filter cartridges be replaced?

A: Replacement intervals range from 6 to 18 months, depending on the operating environment and maintenance routine. Regular inspection is recommended to maximize longevity and performance.

Q: How does the mounting flange design ensure secure installation?

A: The 3-lugs flange design provides robust, secure mounting for each cartridge, ensuring easy installation and stable operation even in rigorous conditions.
