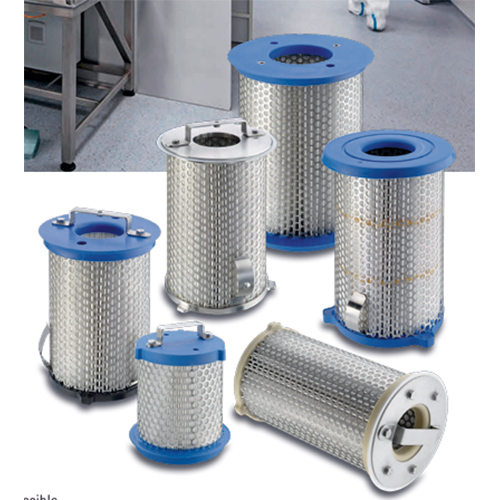

Isolator push pull filter
Isolator push pull filter

Isolator push pull filter

Price 6800 INR/ Piece

MOQ : 1 Piece

Isolator push pull filter Specification

  • Sealing
  • Polyurethane Gasket (Standard; Silicone Optional)
  • Filter Rating
  • H13, H14, U15 as per EN1822 (Model-Dependent)
  • Pore Size
  • 0.3 micron (Standard for HEPA)
  • Filter Media
  • Microfiber Glass Paper
  • Shape
  • Cylindrical
  • Inlet Diameter
  • Customized per Requirement (Typically Matches Overall Diameter)
  • Pressure
  • Maximum 600 Pa (Repeated per Technical List)
  • Outlet Diameter
  • Customized per Requirement (Typically Matches Overall Diameter)
  • Product Type
  • HEPA Filter Module
  • Material
  • Stainless Steel Housing, Synthetic Filter Media
  • Type
  • Isolator Push Pull Filter
  • Cartridge Style
  • Push-Pull Cartridge
  • Diameter
  • 100 mm to 400 mm (Approximate, Model-Dependent)
  • Efficiency
  • Up to 99.995% (HEPA/ULPA, Depends on Configuration)
  • Application
  • Cleanroom Isolators, Pharmaceutical Production, Laboratory Equipment
  • Flow Capacity
  • 150-800 m3/h (Varies by Size & Model)
  • Temperature Resistance
  • Up to 70C Continuous Operating
  • Gasket Position
  • Top and Bottom Sealing
  • Installation
  • Horizontal or Vertical Mounting
  • Replacement Frequency
  • 6-12 Months (Depending on Usage and Load)
  • Weight
  • Typically 1.5 - 12 kg (Depending on Size)
  • Colour
  • Blue End Caps, Metallic Body
  • Resistance to Chemicals
  • High Chemical Resistance (for Cleanroom Applications)
  • Testing Standard
  • Tested as per EN1822, ISO 29463
  • End Cap Material
  • ABS Plastic or Powder-Coated Aluminum



About Isolator push pull filter

Isolator Push Pull Filter is designed for efficient air filtration and safe material handling in pharmaceutical isolators and containment systems. R+B Filter Manufacturing Enterprises Pvt Ltd is a leading manufacturer and supplier of Isolator Push Pull Filters in India, offering reliable filtration solutions with robust construction, high efficiency, and easy replacement. These filters are suitable for applications requiring controlled, clean, and contamination-free airflow.



Versatile & Robust Design

Tailored for cleanroom and pharmaceutical use, this filter incorporates durable stainless steel construction, with customizable inlet and outlet diameters for seamless integration. Its push-pull cartridge simplifies installation, supporting both horizontal and vertical mounting configurations.


Exceptional Filtration Performance

Engineered with microfiber glass paper media, the filter ensures a high level of particle removal, offering up to 99.995% efficiency (according to model and filter configuration) and pore sizes down to 0.3 microns. Each unit is tested per EN1822 and ISO 29463 standards for reliable and consistent performance.


High Chemical & Temperature Resistance

This filter boasts high resistance to a variety of industrial chemicals, making it ideal for sensitive environments. It also maintains its structural integrity and filtration efficiency in continuous operating temperatures up to 70C.


Convenient Maintenance & Replacement

Replacement is straightforward, with a recommended interval of 6-12 months depending on usage and load. The top and bottom polyurethane or optional silicone gaskets ensure secure and effective sealing, minimizing leakage and maintenance downtime.

FAQ's of Isolator push pull filter:


Q: How do I install the Isolator Push Pull Filter in my cleanroom or laboratory equipment?

A: The filter is designed for straightforward installation in either horizontal or vertical configurations. Its push-pull cartridge form allows for secure mounting into isolator housings or duct systems by aligning the gasketed ends with the sealed surfaces and securing them as per the equipment's design.

Q: What benefits does this filter offer for pharmaceutical production environments?

A: It offers exceptional HEPA/ULPA filtration (up to 99.995% efficiency), high chemical and temperature resistance, and customizable sizing-ensuring compliance with pharmaceutical standards and protection for sensitive processes.

Q: When should I replace the filter for optimal performance?

A: Replacement is recommended every 6-12 months, depending on operational hours, airborne particle load, and application requirements. Routine inspections help determine if earlier replacement is needed to maintain performance.

Q: Where can the Isolator Push Pull Filter be used?

A: It is suitable for use in cleanroom isolators, pharmaceutical manufacturing facilities, laboratory air handling units, and any controlled environment requiring stringent particulate and chemical containment.

Q: What testing standards does this filter conform to?

A: Each filter is tested according to EN1822 and ISO 29463 standards, ensuring classification as H13, H14, or U15 depending on the model, and guaranteeing reliable removal of microscopic particles.

Q: How does the filter resist chemical and temperature challenges in demanding applications?

A: The materials-stainless steel housing, ABS/aluminum end caps, and microfiber glass paper media-provide high chemical resistance and continuous temperature tolerance up to 70C, making them appropriate for harsh environments.

Q: What are the main usage benefits of the push-pull cartridge system?

A: The push-pull cartridge design simplifies filter replacement and maintenance, minimizes equipment downtime, enhances safety by reducing contamination risks during handling, and ensures effective sealing through reliable gasket positioning.
